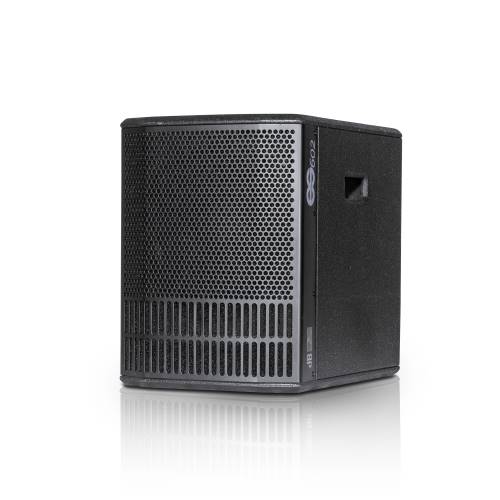

Description DB Technologies ES 602 Specs Acoustical Frequency Response 44 to 15,000 Hz (-10 dB) Maximum SPL 118 dB Type MF-HF: 4x 3″, Neodymium LF Detail 1 x 10″ Directivity 95 x 65° Amplifier Amplifier Technology Digipro G3 Amplifier Class Class-D Power Amp 800 W Controls 1 x encoder, 1 x audio signal monitoring LED, 1 x audio limiter LED Power Supply SMPS with PSU auto-range Power Connections VDE socket Cooling Convection Processor Controller DSP 56-bit Converter AD/DA: 24-bit / 48 kHz Presets Flat, bass boost, bass reduction, playback, club, vocal, monitor, anti-feedback Limiter Dual active, peak, RMS, thermal Crossover Frequency LF-MF: 210 Hz Inputs Channel Mic/Instrument: 1 x combo XLR-1/4″ balanced/unbalanced input with Mic/ line sensitivity switch 1 x RCA stereo input Output Link: 1 x XLR balanced output Mechanics Housing Subwoofer: 15 mm black painted birch plywood Tops: Polypropylene PP Handles 2 x lateral side (subwoofer) Dimensions (W x H x D) Top: 4 x 14 x 5.4″ (10.5 x 35.5 x 14 cm) Subwoofer: 14 x 16 x 17″ (36 x 41 x 43 cm) Weight Top: 4.2 lb (2 kg) Subwoofer: 31.5 lb (14.2 kg)
| Weight | 1 kg |
|---|
