Top Loading Lifting tower – Capacity 496 lbs Max Height 17 ft – Made in Spain by Fantek
$52.64
$72.64

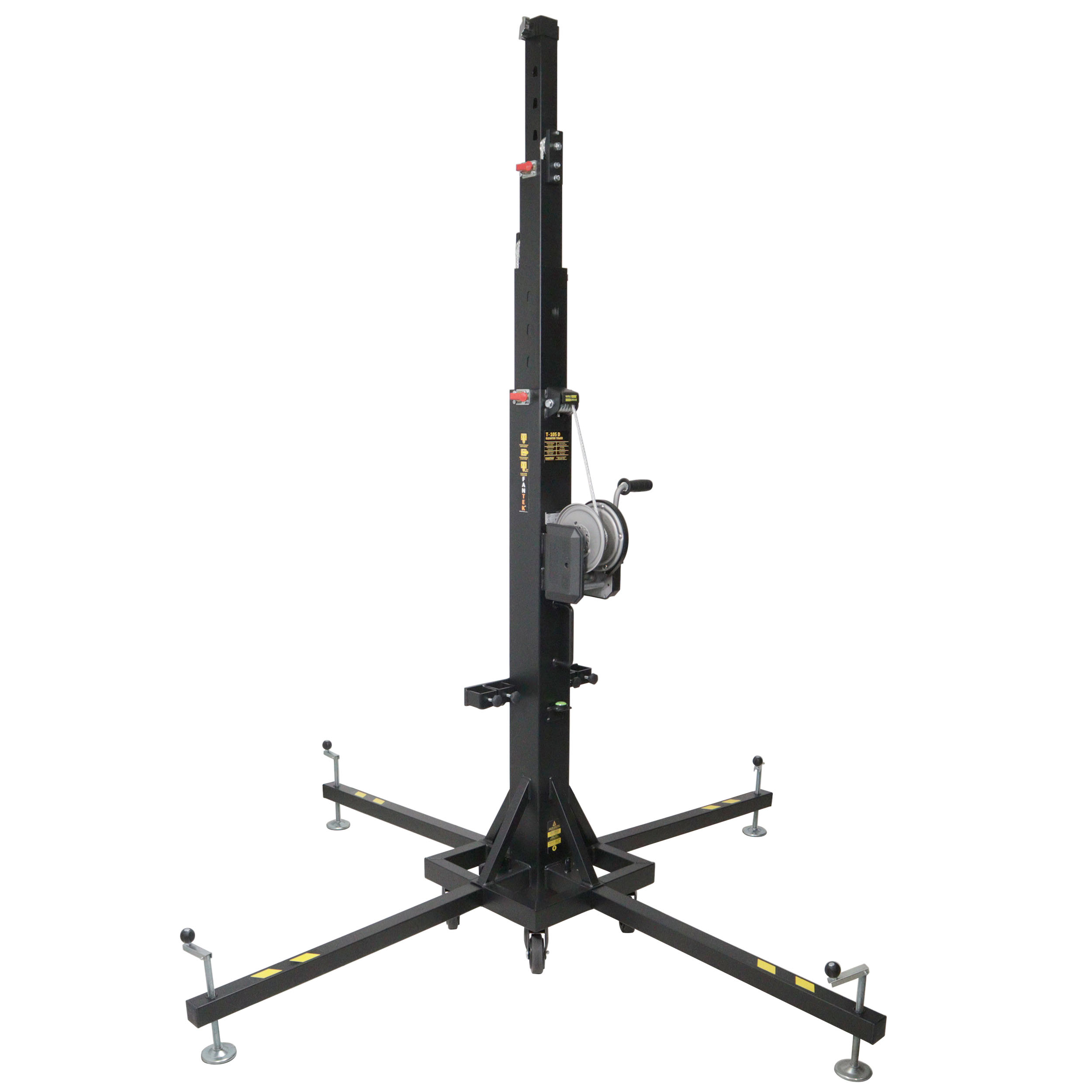

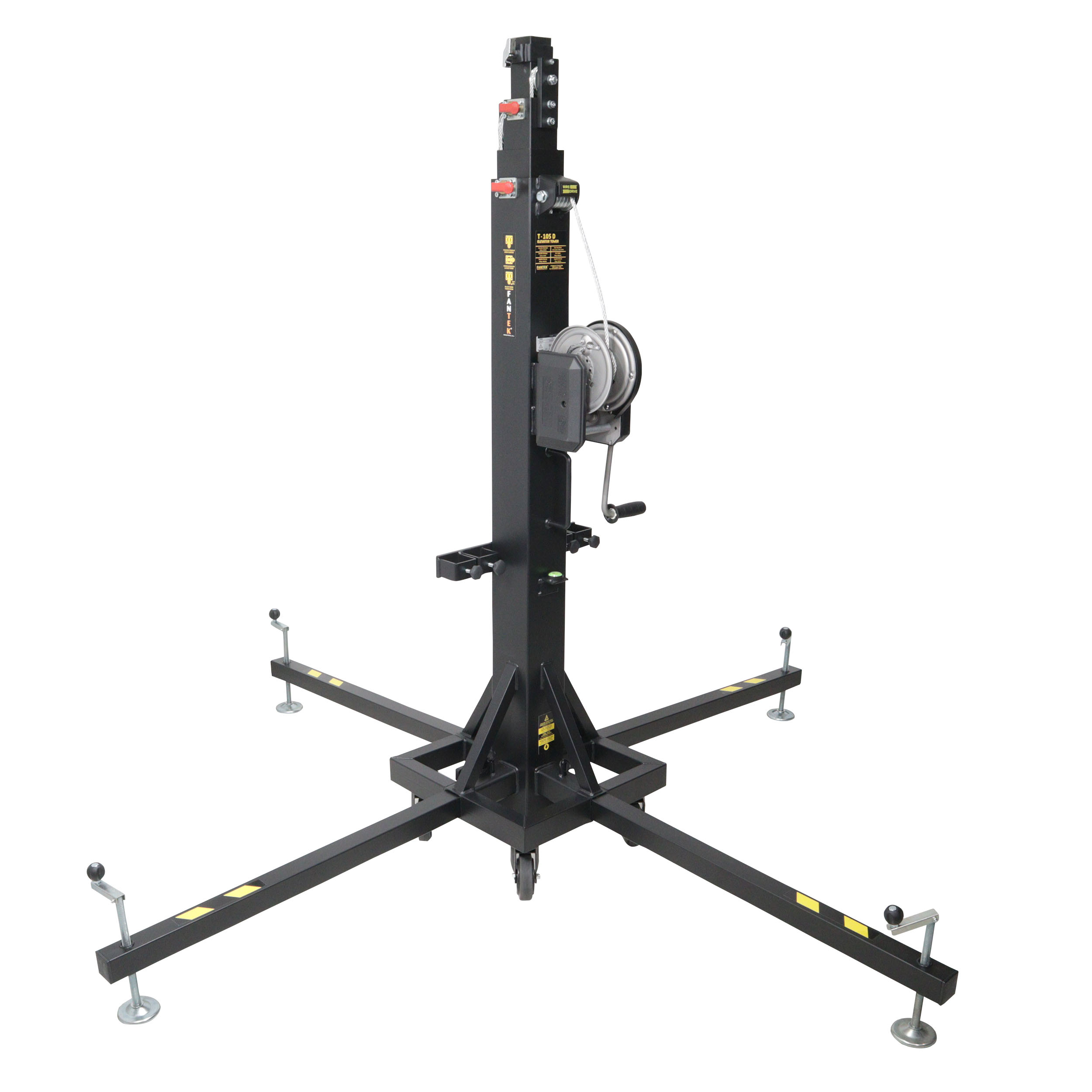

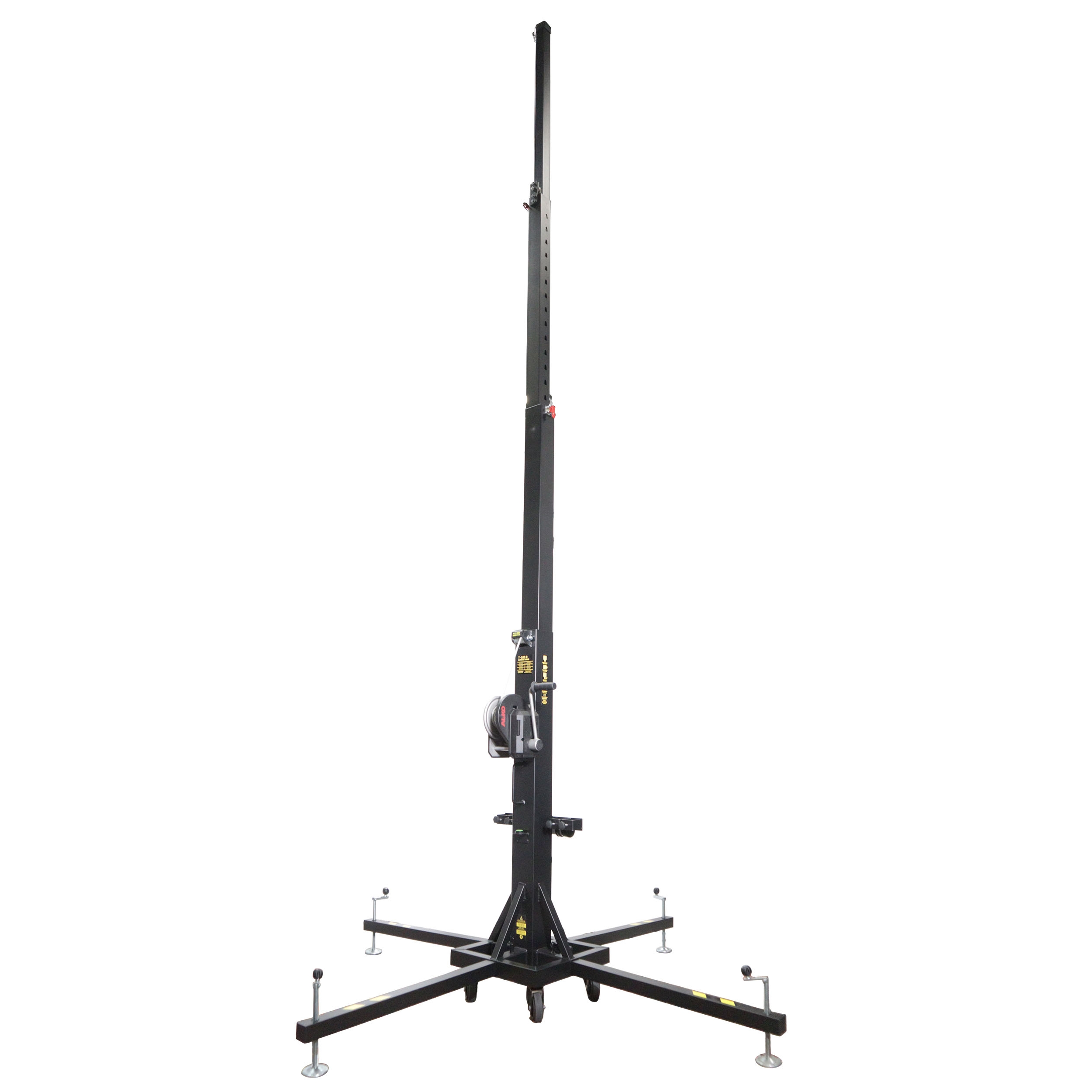

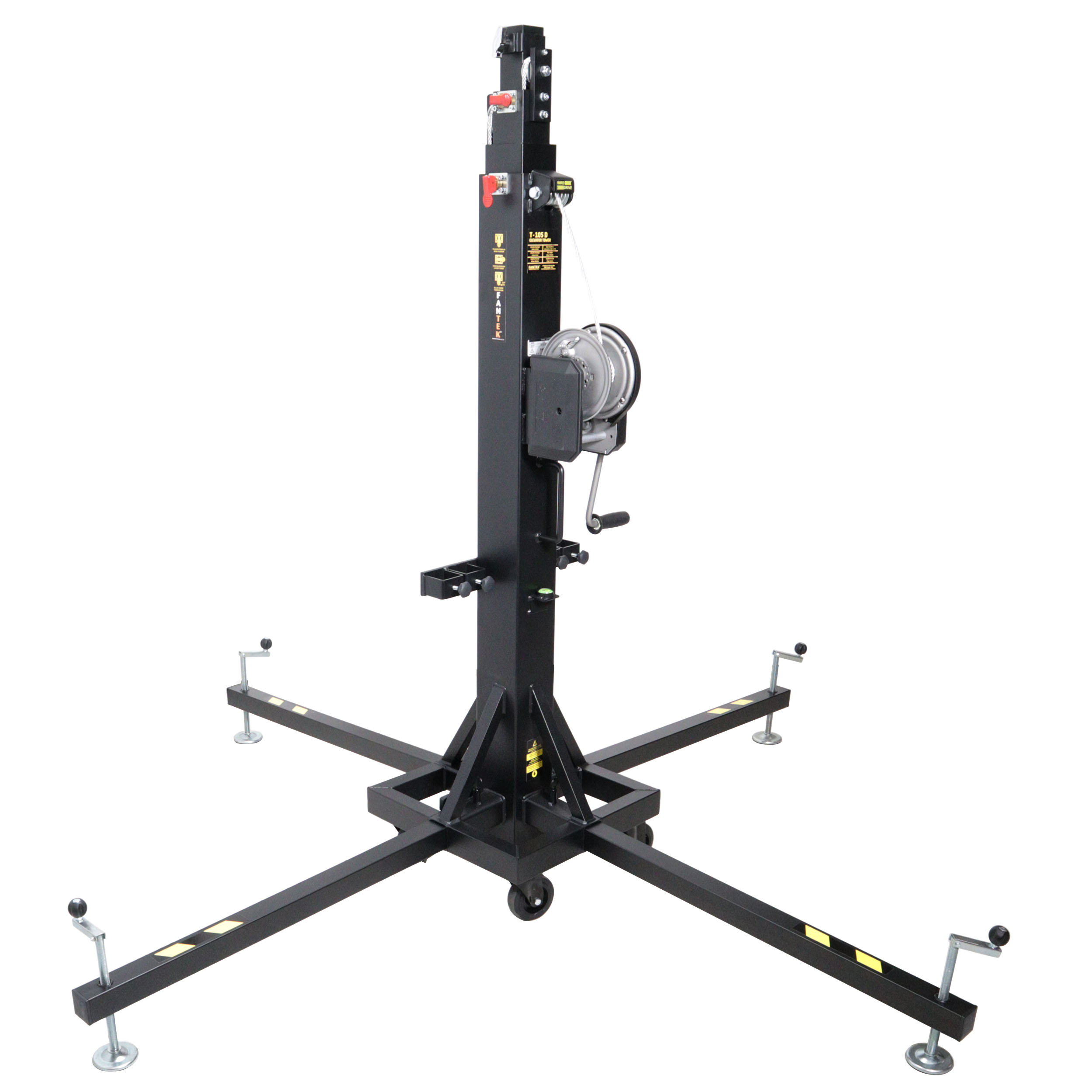

The XTF-T105D Top Loading Lifting tower – is ready to lift a Max load of 496 lb / 225 kg at a Max height of 17 ft / 5,18 meters. It is composed of four extensible steel profiles, lifted by high-strength steel cable with ribbed driven pulleys with SELOIL bearings. Fixing section of the tower to the height desired by automatic locking pin steel. Legs with non-slip rubber feet and levelers that allow its location on uneven terrain. The entire system is operated by a manually operated winch. The T 105 D performs as the best at intense use. Made in Spain by Fantek Use with: XT-ATCOB Mobile Support for Trusses and towers from T-1 Maximum Height 16.99 lb Folded Height 5.80 lb Maximum Load 496.04 lb Minimum Load 55.12 lb Unfolded Base 5.09 ft (diameter) Winch 1984.16 lb
