Top Loading Truss Lifting Tower – Capacity 220 lbs Max Height 12.47 ft – Made in Spain by Fantek
$68.61
$120.75

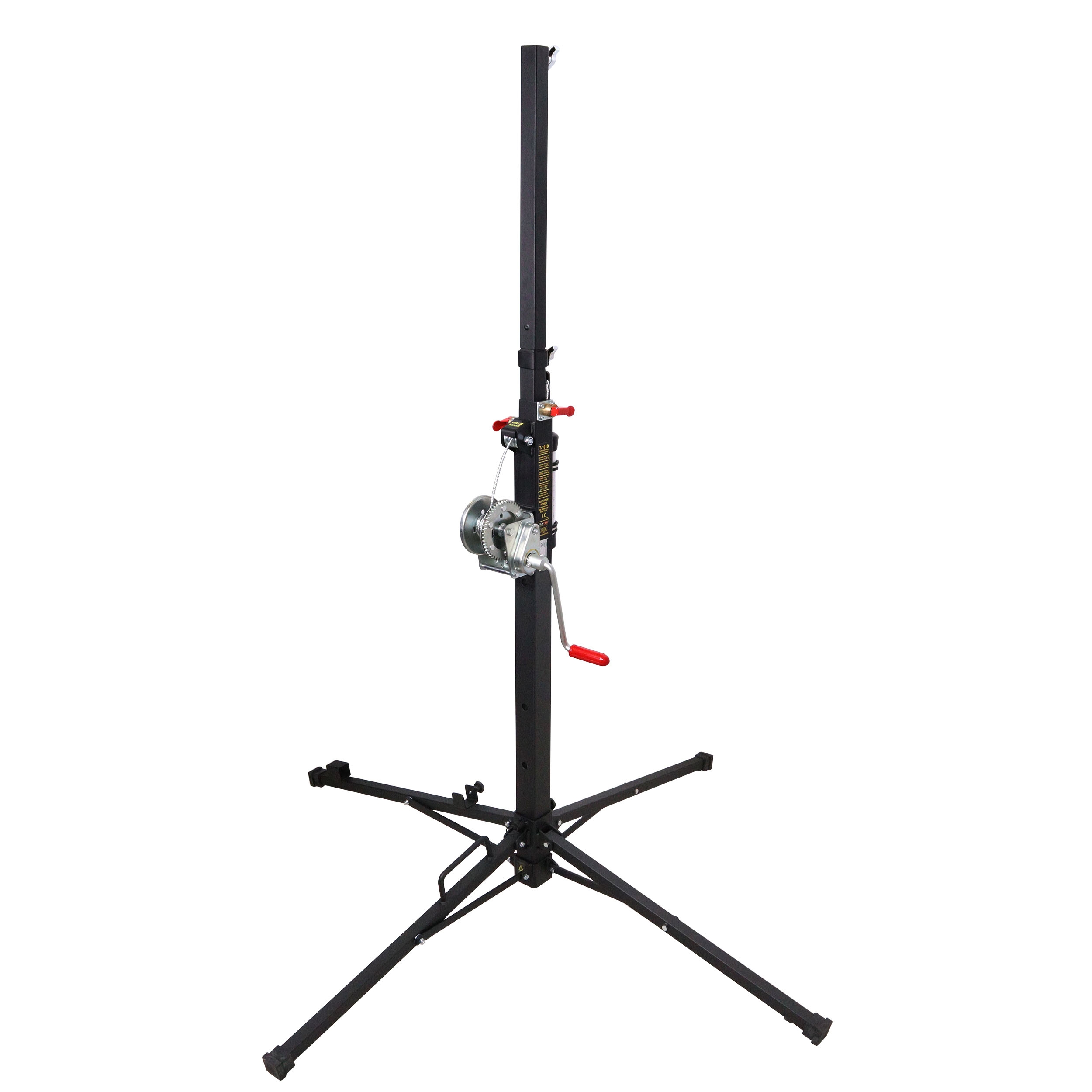

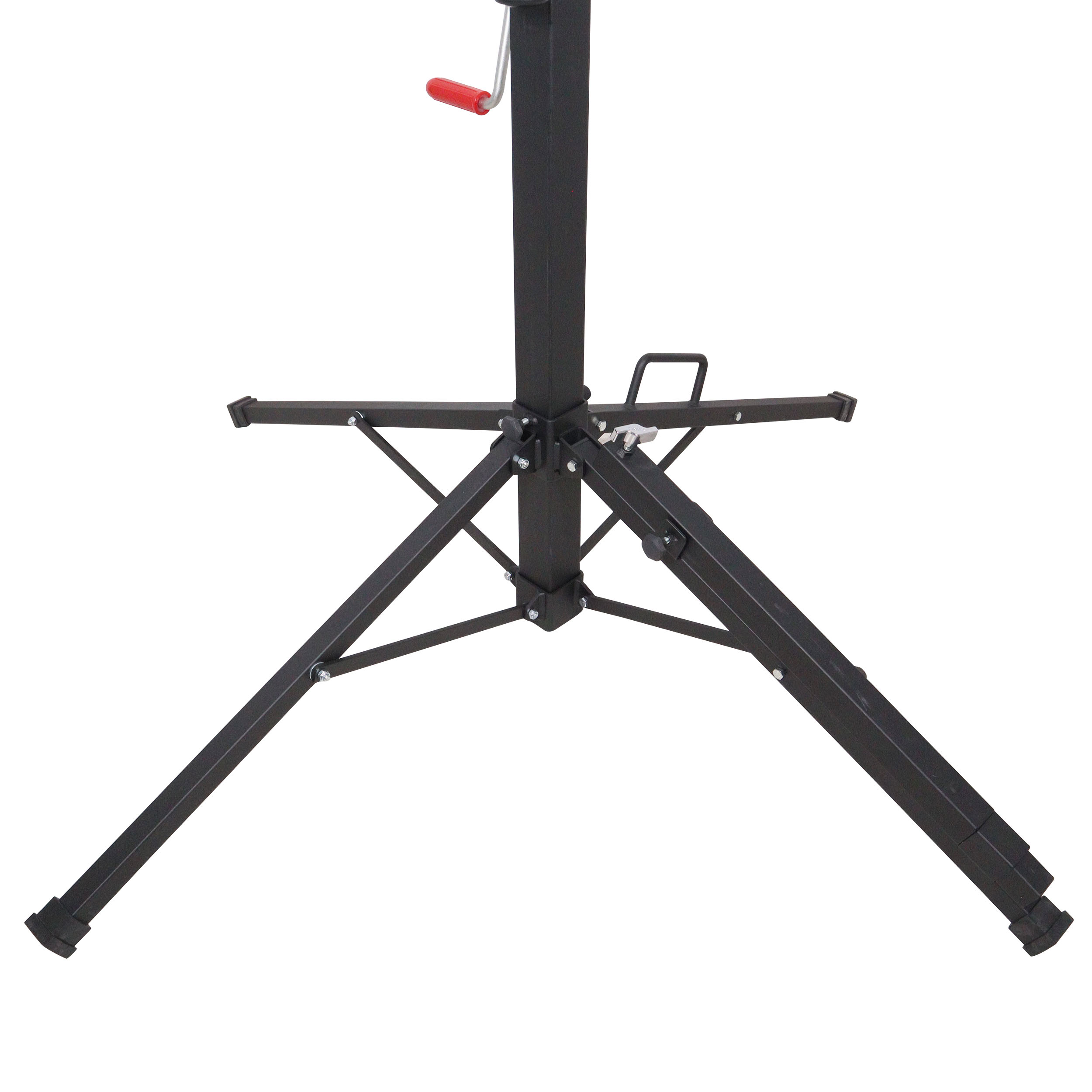

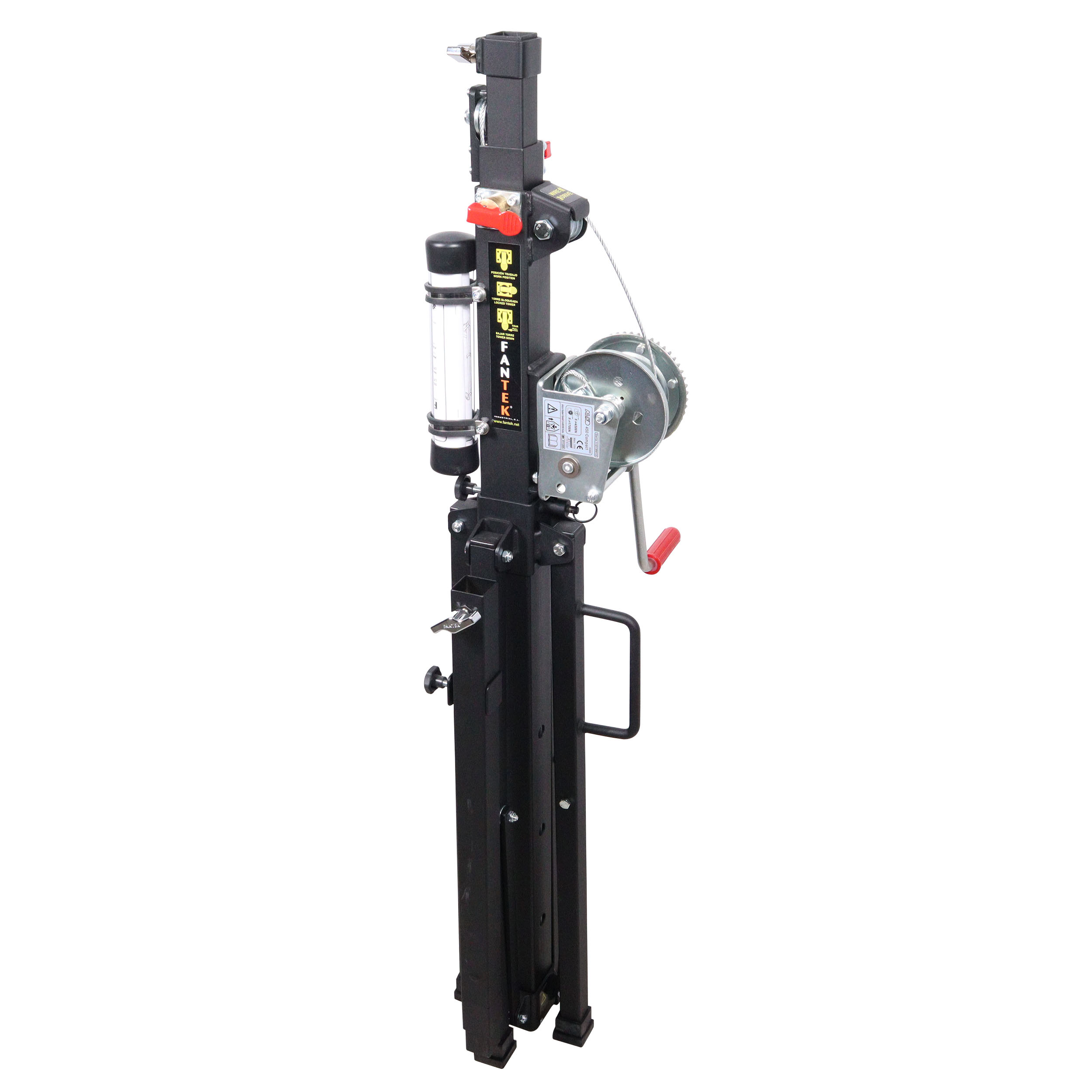

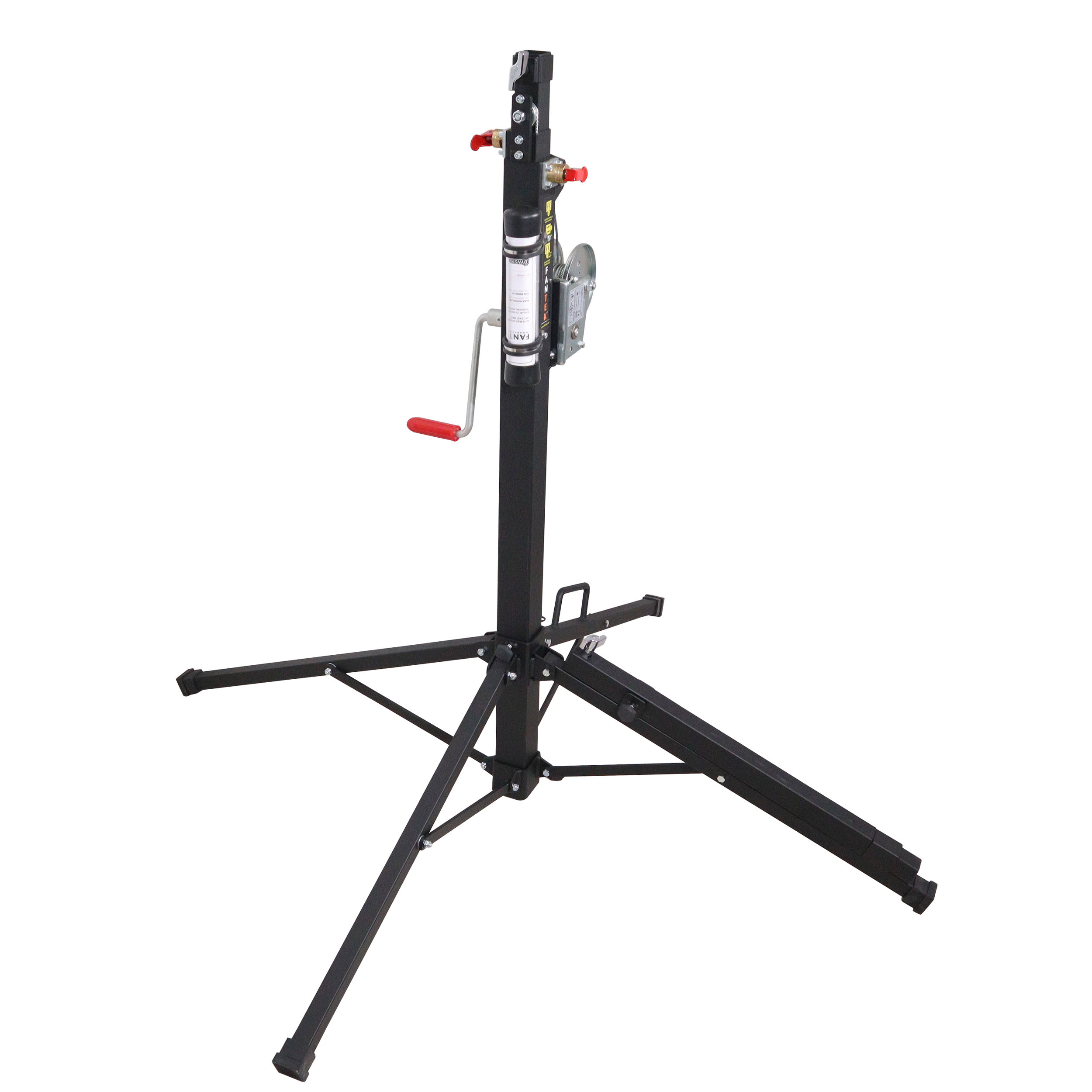

The XTF-T101D Telescopic Top lifting Truss Tower by Fantek is Made in Spain is ready to lift a Max Load of 220 lbs / 100 kg at a Max Height of 12.47 ft / 3,8 meters. The XT-FT101D model is a top loading tower designed to lift vertical loads while keeping its compact size, which allows an easy transportation. It is composed of three extensible steel profiles, lifted by a high-strength steel cable with grooved pulleys with SELOIL bearings. Automatic locking system comprised of self locking steel pins that fixes the tower to the deisred height. Legs with non-slip rubber feet. The entire system is operated with a manual winch. Standards and Certifications CE, DGUV, BGV C1, BGG 912 Made in Spain by Fantek Use with: XTF-ATCOB | Mobile Support for truss and towers from T-1 Folded Height: 4.59 ft Ext. Base Dims: 5.25 x 5.25 ft Folded Base Dims: 0.75 x 0.92 ft Unfolded Base: 5.28 x 5.28 ft Max height: 12.47 ft Min. height: 4.59 ft No. of Sections: 3 Min. Load: 55.12 lb Max Load: 220 lb (mechanism mode) Winch: 771.62 lb Weight: 52.91 lb
