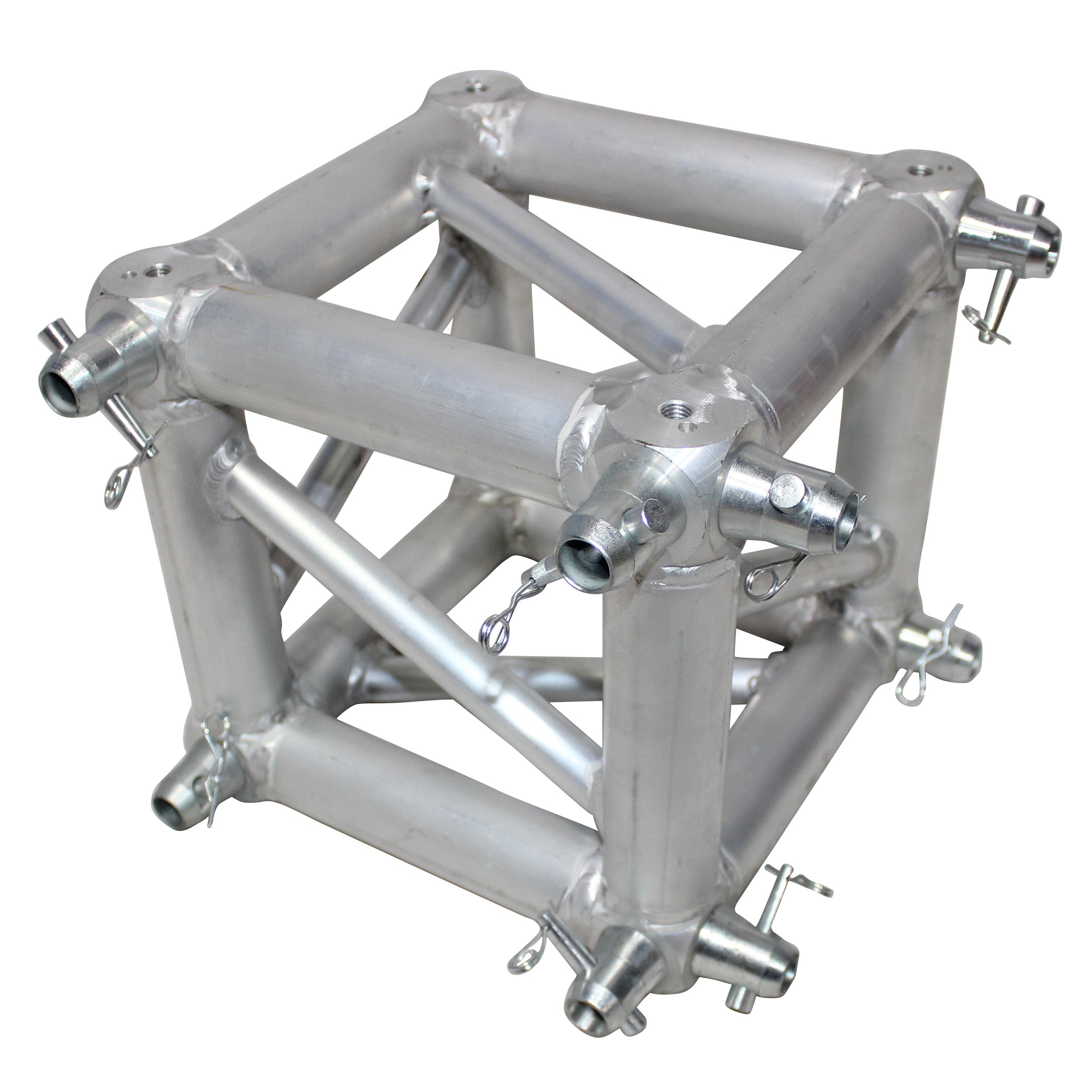

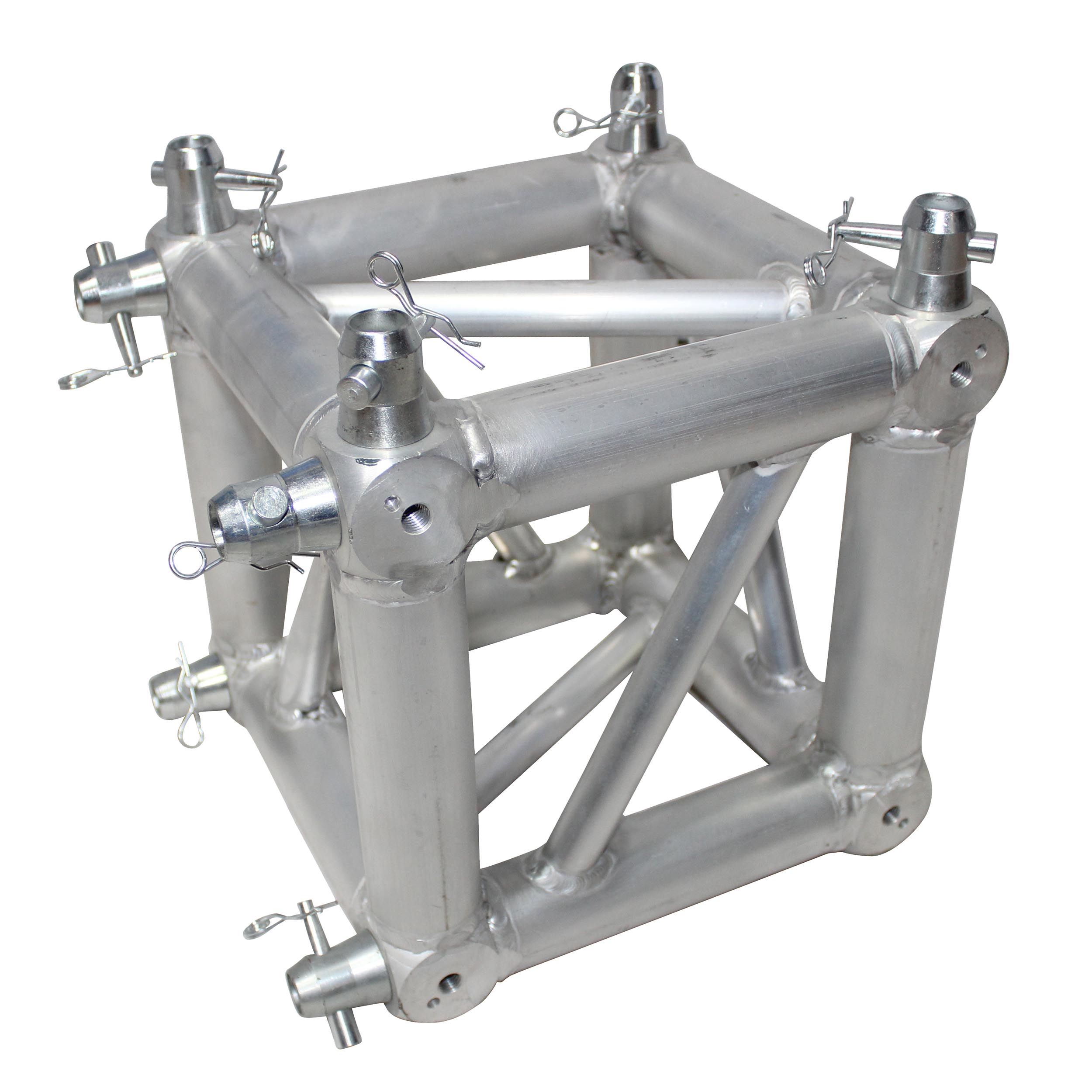

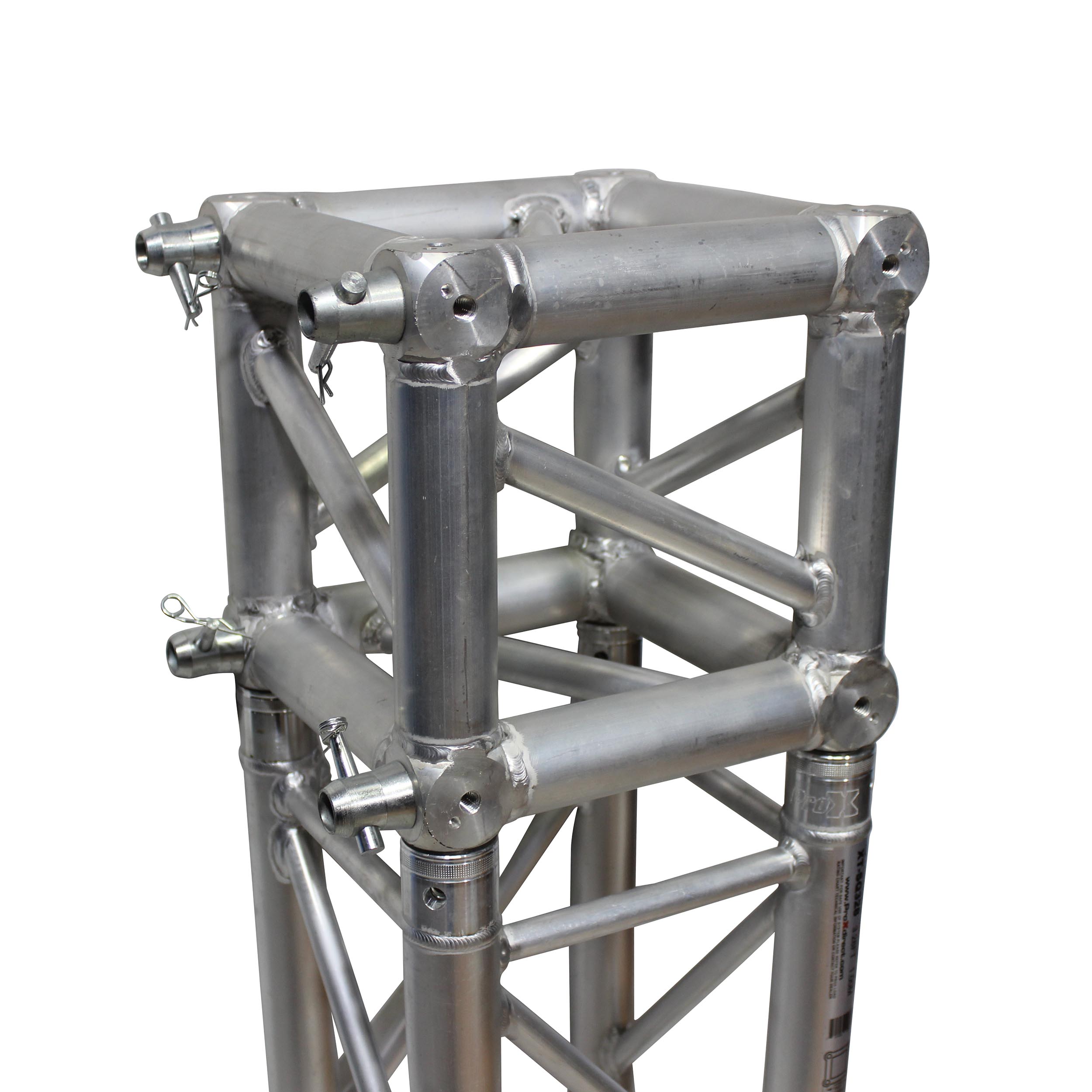

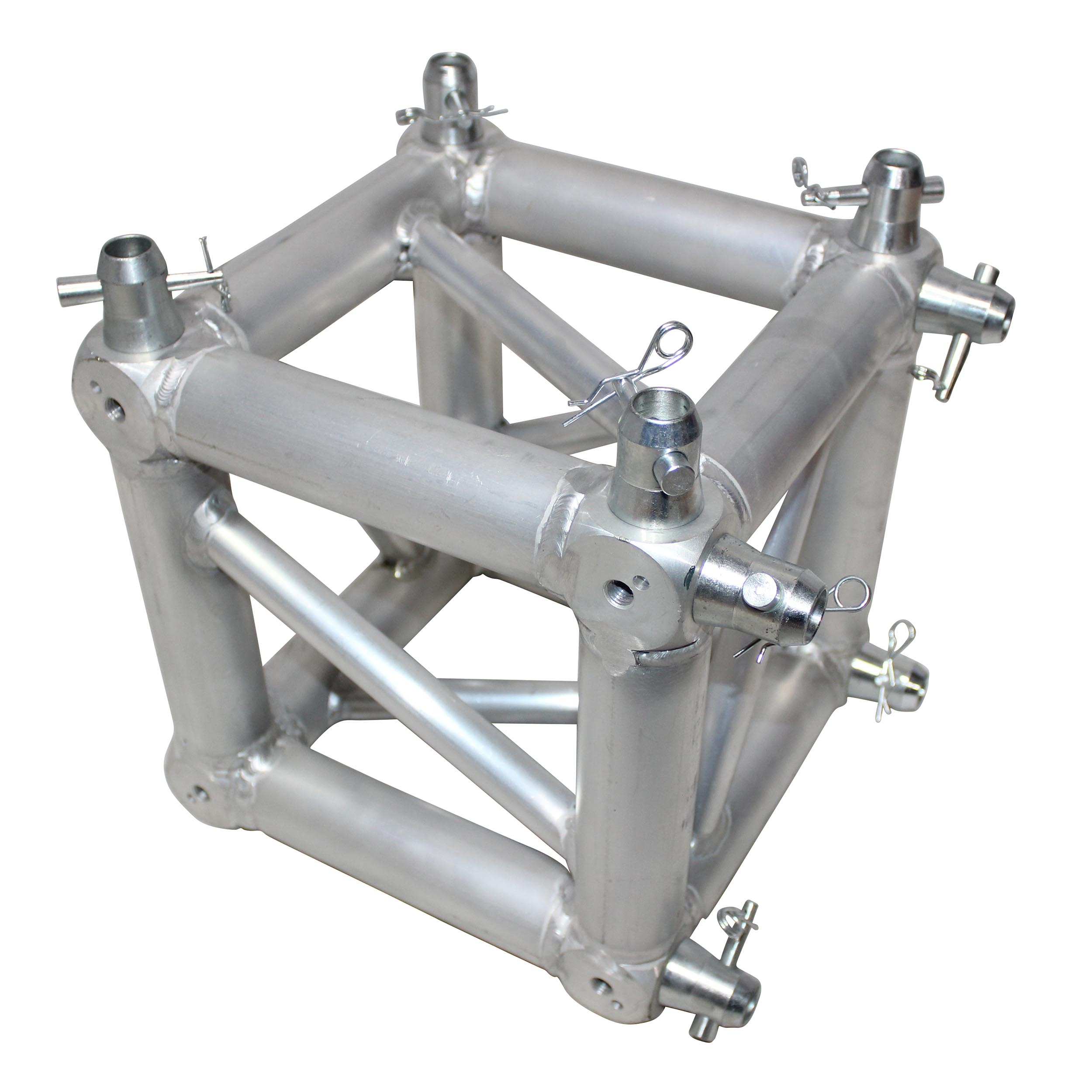

Square Truss Junction Block with 8 Half Conical Couplers

The ProX XT-JB6W-2W Square Truss Junction Block is a universal connecting point for F34 trusses, and it’s equipped with connecting hardware for use with ProX XT F34 square truss components.  It features 2″ outer diameter tubing and 3/4″ diagonal bracing. It has XT Series 3mm thick tube walls, this truss junction block is strong and can be used for many applications.  It is built to the highest standards of safety and performance. 8 Half Conical couplers included, additional conical couplers can be added for more utility. (Sold Separately XT-CA-103) At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations. Always know your load weight for your equipment: VERY IMPORTANT – CLICK HERE for Truss Loading Chart. Tolerance Free Standard Conical connector Main tube wall thickness of .11in XT-SQ SERIES DIMENSIONS: Height: 11.42in / 290mm Width: 11.42in / 290mm Weight: 21lb per 3.28 ft / 9,5kg per meter Main Tube: 2in / 50mm Wall Thickness:  .11in / 3mm Braces: .75in / 20mm Includes connecting hardware set. ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing. Manufactured in our Own Factory! Material: EN-AWT6 6082 Aluminum TUV Certified Aluminium Welding TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality. Standard F34 Square Truss Configurations.
