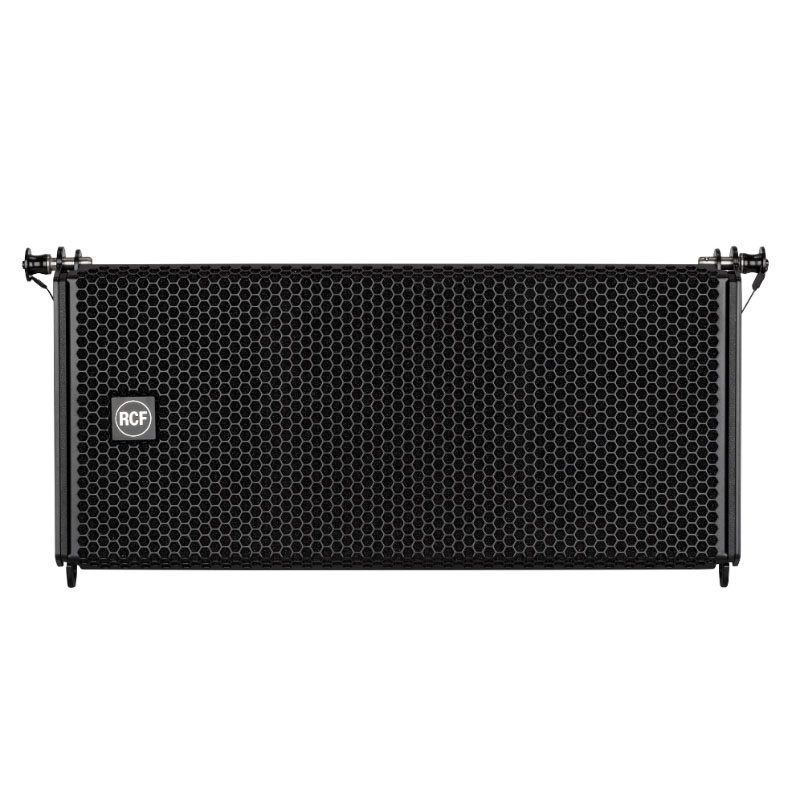

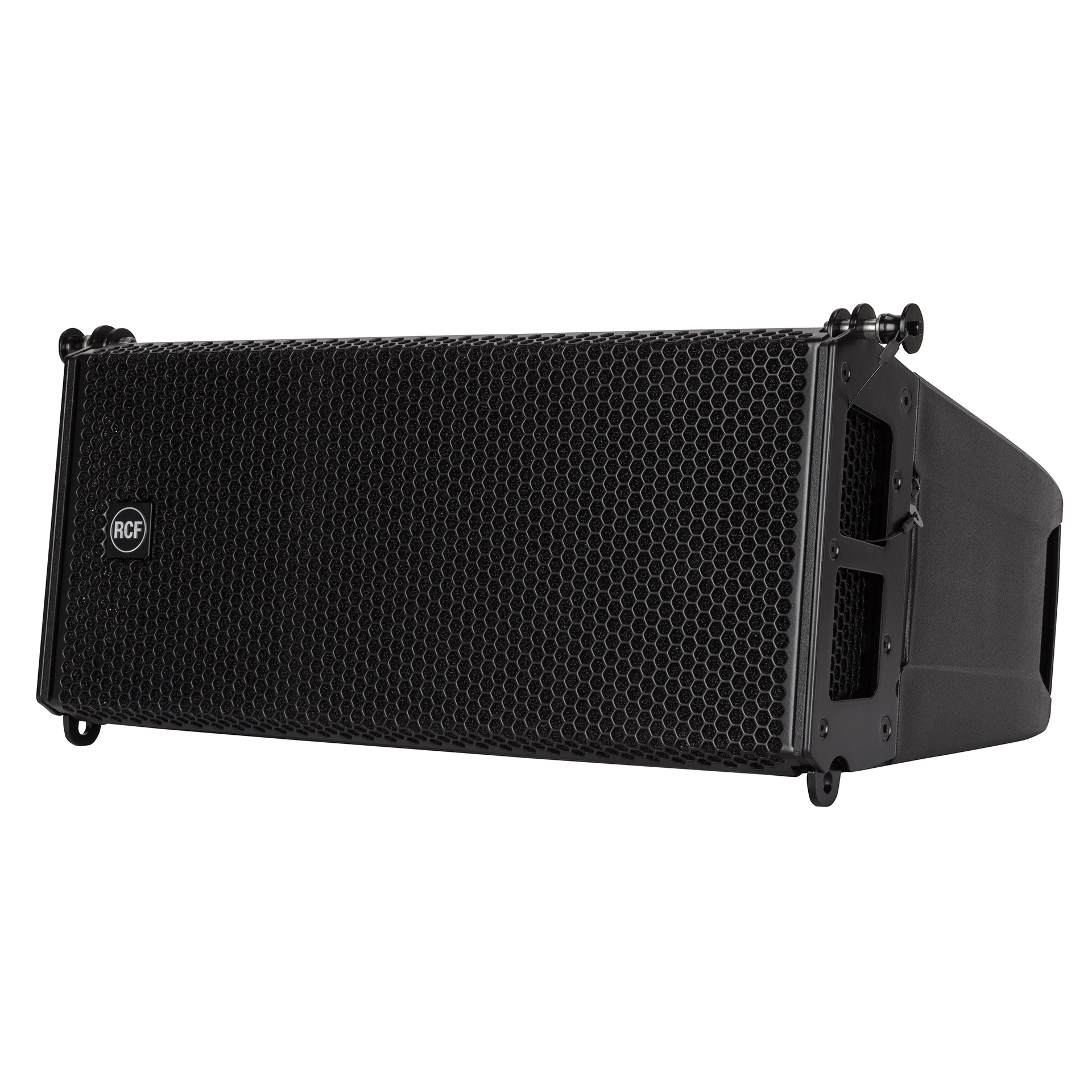

RCF HDL 6-A 2-way line array module 131 dB max SPL

$63.24 $110.67
Features of the RCF HDL 6-A 2-way line array module 131 dB max SPL: 1400 W, two-way amplification 131 dB max SPL 1.7″ voice coil neodymium compression driver 2 x high power neodymium 6.0″woofers 48 kHz, 32 bit floating point DSP processing Symmetrical design Extremely low weight FiRPHASE processing Specifications: Acoustical specifications FREQUENCY RESPONSE: 65 Hz ÷ 20000 Hz MAX SPL @ 1M: 131 dB HORIZONTAL COVERAGE ANGLE: 100° VERTICAL COVERAGE ANGLE: 10° Transducers COMPRESSION DRIVER: 1 x 1.0” neo, 1.75” v.c WOOFER: 2 x 6.0” neo, 2.0” v.c Input/Output section INPUT SIGNAL: bal/unbal INPUT CONNECTORS: XLR OUTPUT CONNECTORS: XLR INPUT SENSITIVITY: 4 dBu Processor section CROSSOVER FREQUENCIES: 900 Hz PROTECTIONS: Thermal, RMS LIMITER: Soft Limiter CONTROLS: HF correction Power section TOTAL POWER: 1400 W Peak, 700 W RMS HIGH FREQUENCIES: 400 W Peak, 200 W RMS LOW FREQUENCIES: 1000 W Peak, 500 W RMS COOLING: Convection CONNECTIONS: Powercon IN/OUT Standard compliance CE MARKING: Yes Physical specifications CABINET/CASE MATERIAL: PP Composite HARDWARE: Array fittings HANDLES: 2 Back GRILLE: Steel COLOR: Black, White Size HEIGHT: 237 mm / 9.33 inches WIDTH: 470 mm / 18.5 inches DEPTH: 377 mm / 14.84 inches WEIGHT: 11.6 kg / 25.57 lbs
