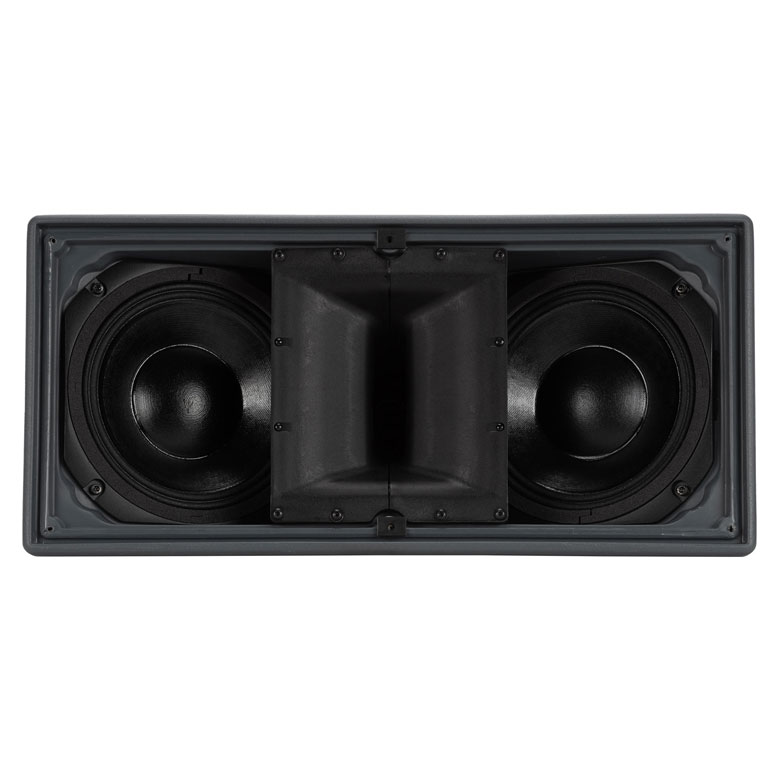

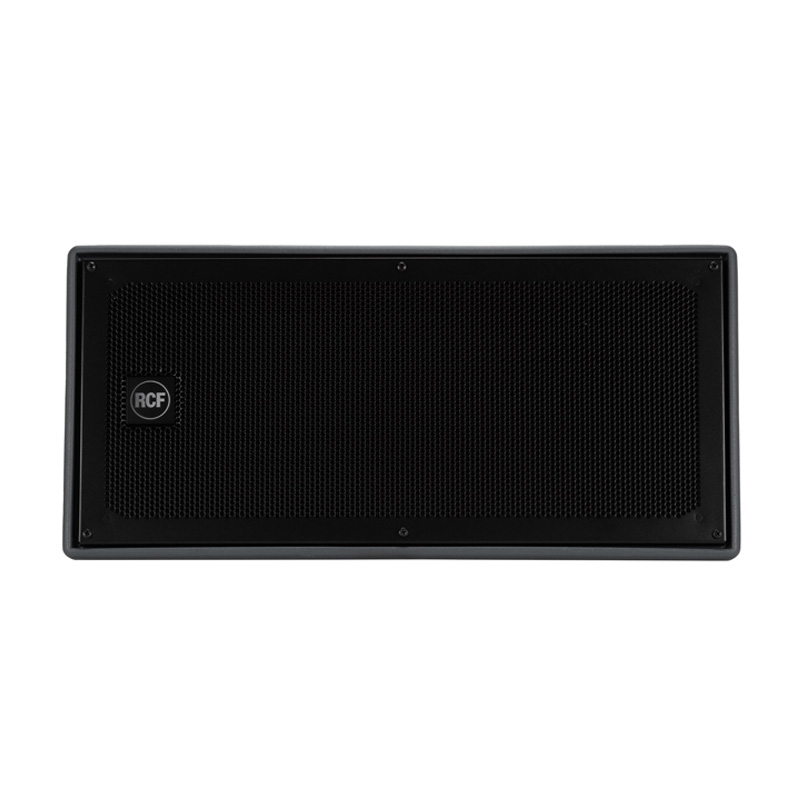

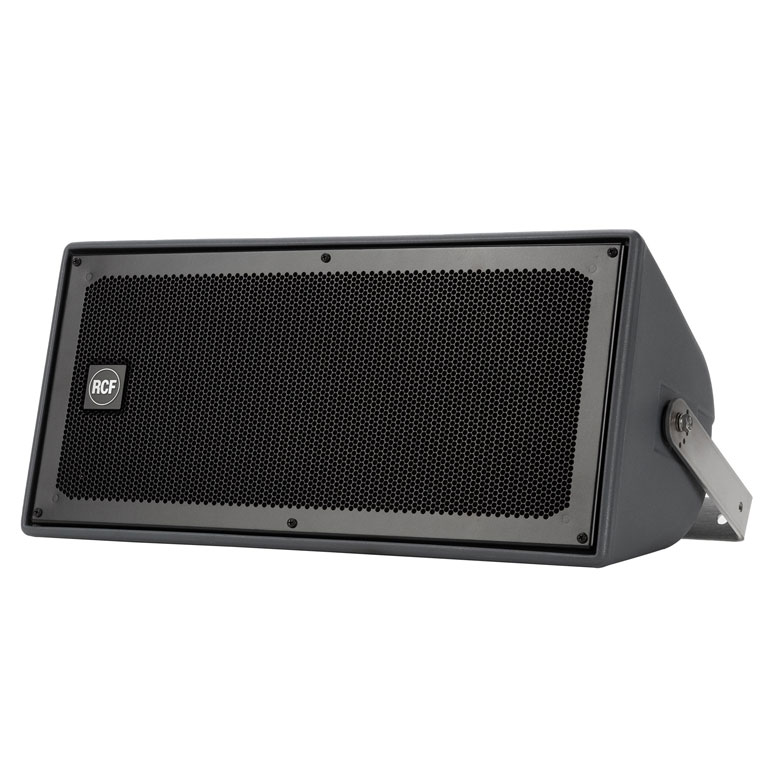

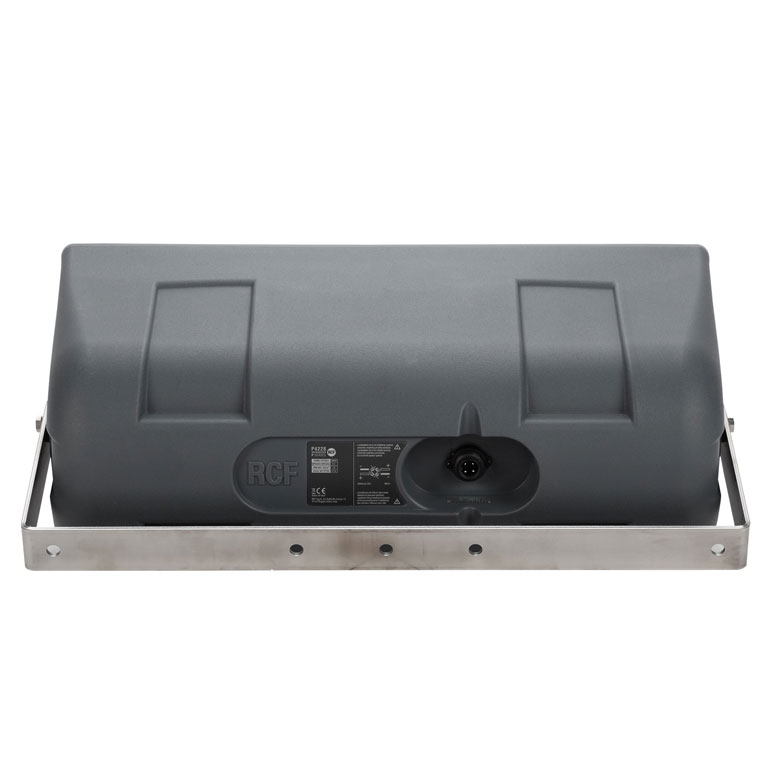

Features of the RCF P 4228 2 x 8″ woofer 2.5″ neodymium c. driver: 129 dB Max SPL, 400W RMS Weatherproof cabinet IP55 with UV protection 110° x 60° constant directivity horn Rotomolded cabinet available in white or black Built-in passive LICC crossover with AMCDP protection 2 x 8″ woofer with 2.5″ voice coil 1 x 2.5″ voice coil RCF Precision neodymium compression driver Amphenol IP67 4 pole input connector Specifications: FREQUENCY RESPONSE (-10DB): 80 Hz ÷ 20000 Hz MAX SPL @ 1M: 129 dB HORIZONTAL COVERAGE ANGLE: 110° VERTICAL COVERAGE ANGLE: 60° DIRECTIVITY INDEX Q: 9 SYSTEM SENSITIVITY: 97 dB Power section NOMINAL IMPEDANCE (OHM): 8 ohm POWER HANDLING: 400 W RMS PEAK POWER HANDLING: 1600 W PEAK RECOMMENDED AMPLIFIER: 800 W PROTECTIONS: Dynamic active mosfet CROSSOVER FREQUENCIES: 1100 Hz Transducers COMPRESSION DRIVER: 1 x 1.4” neo, 2.5” v.c NOMINAL IMPEDANCE (OHM): 8 ohm INPUT POWER RATING: 90 W AES, 180 W PEAK SENSITIVITY (DB, 1W @ 1M): 110 dB, 1W @ 1m WOOFER: 2 x 8”, 2.5” v.c NOMINAL IMPEDANCE (OHM): 16 ohm INPUT POWER RATING: 300 W AES, 600 W PEAK SENSITIVITY (DB, 1W @ 1M): 95 dB, 1W @ 1m Input/Output section INPUT CONNECTORS: Amphenol eco/mat IP 67 Standard compliance CE MARKING: Yes Physical specifications COLOR: Grey, White – RAL 9003 HARDWARE: 4 x M8 U-bracket and pair of spacers GRILLE: Aluminum with waterproof clothing CABINET/CASE MATERIAL: PE Low Density Size WIDTH: 566 mm / 22.28 inches DEPTH: 250 mm / 9.84 inches HEIGHT: 268 mm / 10.55 inches WEIGHT: 14 kg / 30.86 lbs
