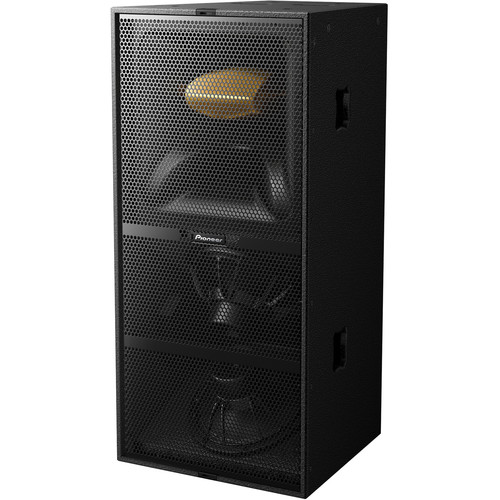

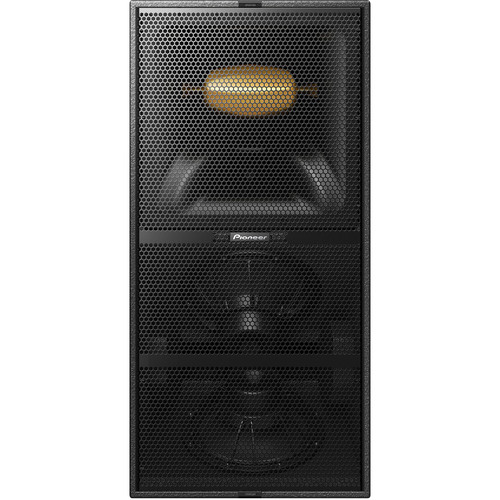

Pioneer Pro Audio 3-Way Hybrid Loaded Bi-Amp Loudspeaker

In the XY-3B, an 8-inch cone driver delivers clean and precise mid-range frequencies using Pioneer Pro Audio’s X-Phase system. A 1-inch compression driver produces crystal-clear HF which, thanks to the moulded Bi-horn, seamlessly blends with the mids. Two 12-inch drivers create tight, chest-pumping low mid. Moulded Bi-horn The 8-inch mid-range driver and the 1-inch compression driver are attached to the integrated waveguide with their depths perfectly aligned to minimise the difference of physical distance and reduce cancellation around the crossover frequency. This unique Bi-horn combines mid and high frequencies in a deep position inside the waveguide, improving the blend of the sounds compared to the performance of a conventional separated horn structure. The waveguide’s curved shape perfectly controls dispersion at 50 degrees horizontal and 35 degrees vertical, providing natural sound with high SPL in the targeted area while reducing the sound pressure outside that area. X-Phase system with gold X-Phase plug Driver cone cancellation is minimised thanks to Pioneer Pro Audio’s X-Phase system. The convex shape forces sound waves into small slits which are arranged in a fan shape, allowing all sound waves to exit in perfect phase aliment. The sound waves are forced over the top and bottom of the X-phase plug, producing higher SPL and greater sound projection over long distances. Specifications: Enclosure Type 3WAY Bi-amp loudspeaker Enclosure 15 mm birch plywood Frequency response 55 Hz~17 kHz Sensitivity (1W/1m) LF: 102 dB MHF: 107 dB Nominal Impedance LF: 4 OHM MHF: 8 OHM AES Power Handling LF: 133 dB(cont.), 139 dB(peak) MHF: 130 dB(cont.), 136 dB(peak) Transformer Taps LF: 12-inch neodymium cone driver x 2 MF: 8-inch neodymium cone driver HF: 1-inch exit neodymium compression driver Power Handling (RMS/Program) LF: 1200 W(RMS), 2400 W(Program) MHF: 200 W(RMS), 400 W(Program) Dispersion Neutrik SpeakON NL4MD-V x 2 Dimensions (W x H x D) 530 mm x 1080 mm x 540 mm Weight 57.6 kg
