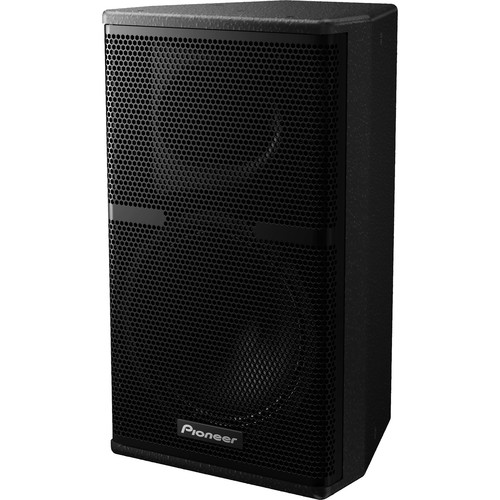

Pioneer Pro Audio XY-101 Two-Way Full-Range Loudspeaker – 10″

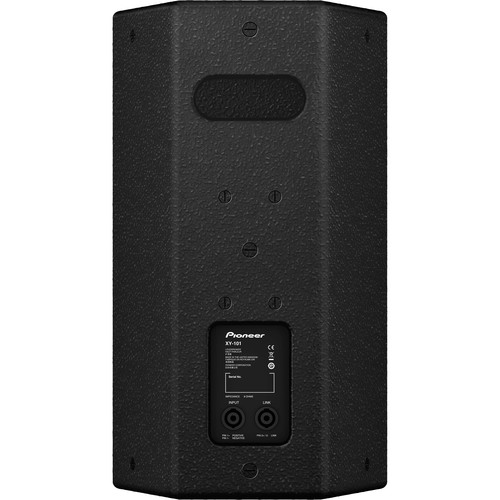

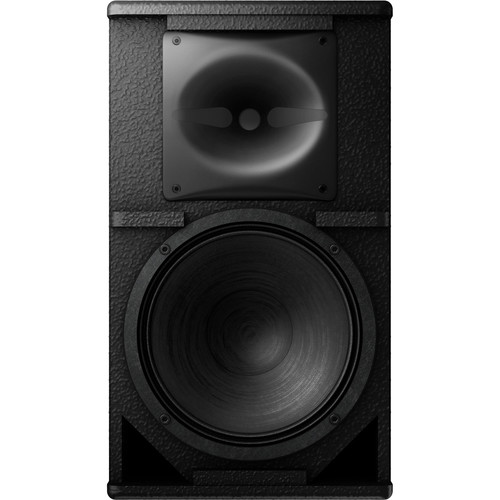

Features: Two-way full range speaker with 10-inch LF driver and a 1-inch compression driver. Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments. Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation. Designed for fixed and mobile applications, with a wide array of flying options. Features top hats for quick set-up. NL4 INPUT and LINK OUT connections as standard. Robust enclosure made from premium multi-laminate birch plywood. Impact resistant textured paint finish. Specifications: Enclosure Type: Two-way passive, reflex-loaded Frequency Response: 70 Hz to 20 kHz Sensitivity (1 W/1 m): 94 dB Nominal Impedance: 8 Ω Power Handling: 400 W RMS, 800 W Program Power Handling AES: 120 dB cont., 126 dB peak Maximum SPL: 116 dB cont., 122 dB peak Dispersion: 90 °H × 60 °V, rotatable   Transformer taps:   10 inch (250 mm) neodymium LF cone driver 1 inch (25 mm) exit neodymium HF compression driver Crossover: Asymmetric internal passive crossover Connectors: 2 × Neutrik SpeakON™ NL4 Dimensions (W×H×D): 292 × 508 × 280 mm, (11.5 × 20 × 11 inch) Weight: 14 kg (30.9 lbs)   Rigging and Hardware:   8 × M8 threaded mounting points (4 top/4 bottom) 3 × M8 threaded mounting points on rear 4 × M8 threaded mounting points on side (2 left/2 right) 4 × M6 threaded points on rear (for wall mount bracket) 1 × flush handle on rear 1 × 35 mm polemount socket Grille: Hex punched steel Enclosure: 15 mm (0.6-inch) birch plywood Finish: Impact-resistant, Black semi-matt textured   Suggested Power Amplifier   Recommended : K2DSP Minimum : M30DHDSP   Accessories:   polemount socket cover (-W model only)
