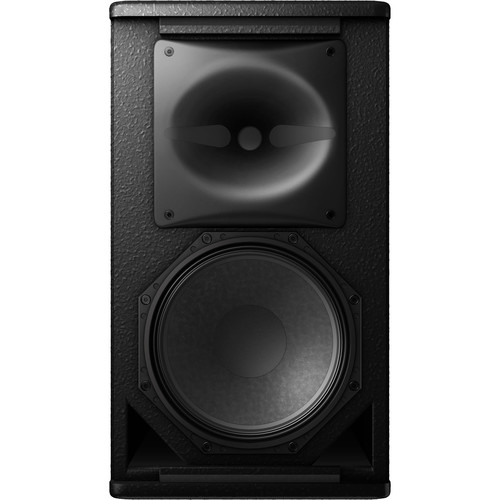

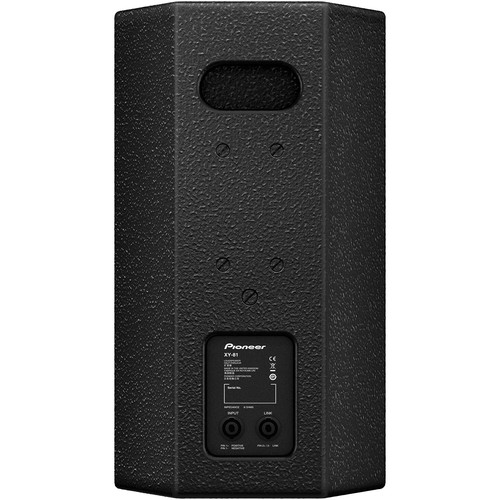

Features: Two-way full range speaker with 8-inch LF driver and a 1-inch compression driver. Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments. Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation. Designed for fixed and mobile applications, with a wide array of flying options. Features top hats for quick set-up. NL4 INPUT and LINK OUT connections as standard. Robust enclosure made from premium multi-laminate birch plywood. Impact resistant textured paint finish. Specifications: Enclosure Type: Two-way passive, reflex-loaded Frequency Response: 75 Hz to 20 kHz Sensitivity (1 W/1 m): 91 dB Nominal Impedance: 8 Ω Power Handling: 350 W RMS, 700 W Program Maximum SPL: 116 dB cont., 122 dB peak Dispersion: 90 °H × 60 °V, rotatable Driver Configuration: 8 inch (200 mm) LF cone driver 1-inch (25 mm) exit neodymium HF compression driver Crossover: Asymmetric internal passive crossover Connectors: 2 × Neutrik SpeakON™ NL4 Dimensions (W×H×D): 262 × 462 × 255 mm, (10.3 × 18.2 × 10-inch) Weight: 12 kg (26.5 lbs) Rigging and Hardware: 8 × M8 threaded mounting points (4 top/4 bottom) 1 × M8 threaded mounting points on rear 4 × M6 threaded points on rear (for wall mount bracket) 1 × flush handle on rear 1 × 35 mm polemount socket Grille: Hex punched steel Enclosure: 15 mm (0.6-inch) birch plywood Finish: Impact-resistant, Black semi-matt textured Suggested Power Amplifier Recommended : K2DSP Minimum : M20DHDSP Accessories: polemount socket cover (-W model only)
