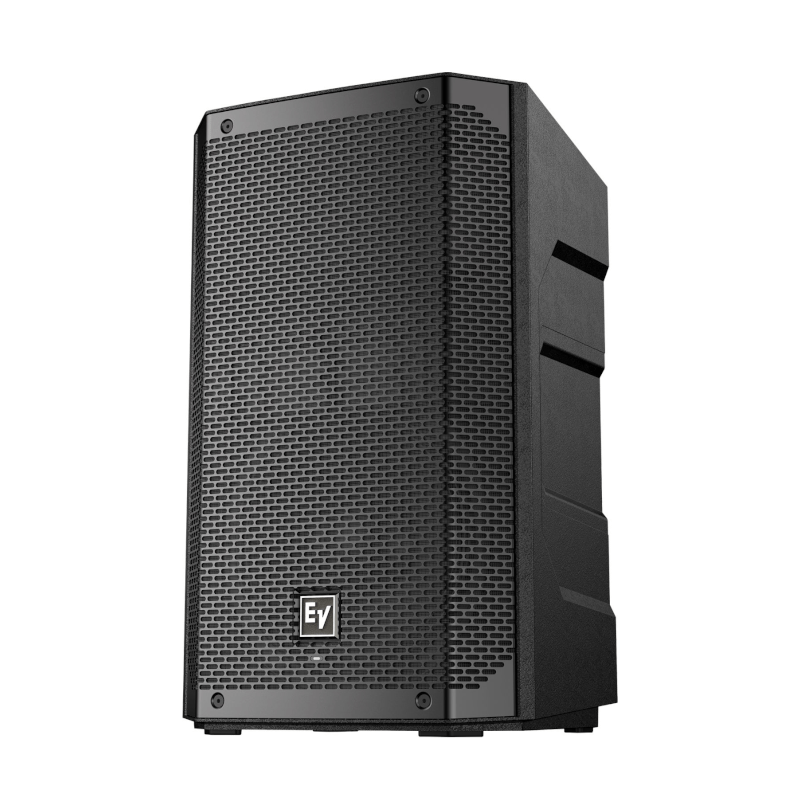

Features of the Passive Speaker: 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices. 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response. High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction. EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading. Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting. Specifications: Axial Sensitivity (SPL, 1 W @ 1 m) 90dB Connector Type Dual NL4 Coverage (Nominal -6 dB) H 90° Coverage (Nominal -6 dB) V 60° Crossover Frequency 2 kHz Enclosure Material Polypropylene Composite Family ELX200 Frequency Range (-10 dB) 49 Hz – 22 kHz Frequency Response (-3 dB) 65 Hz – 20 kHz Grille 18 AWG steel with powdercoat HF Transducer DH-1C 1-inch titanium compression driver LF Transducer EVS-10M 254 mm (10 in) Max. SPL/1m (calc) 127dB Minimum Impedance 7.2Ω Nominal Impedance 8Ω Power Handling (Continuous / Peak) 300 W/1200W Power Rating 1200W Recommended High-Pass Frequency 55Hz Shipping Weight 33.73lbs (15.3kg) Speaker Type Full-Range Suspension (3) M10 suspension points Woofer Size 10inch
