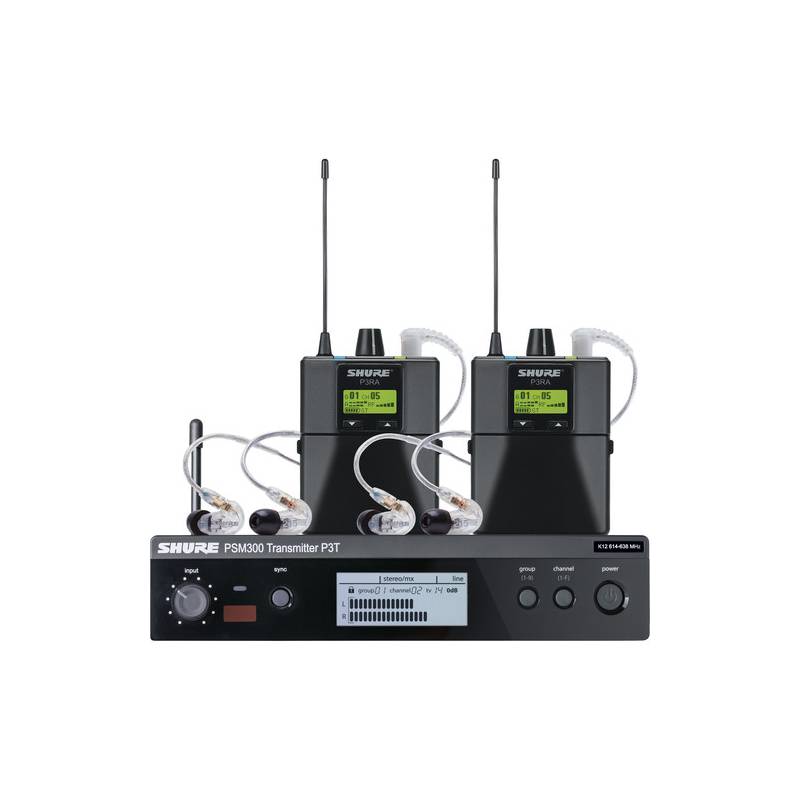

Shure P3TRA215TWP-H20 PSM300 Dual Monitor System with 2 P3RA & 2 SE215-CL
$64.95
$101.32
Features of the Shure P3TRA215TWP-H20 PSM300 Dual Monitor System with 2 P3RA & 2 SE215-CL: P3T Wireless Transmitter for PSM 300 2 x P3RA Wireless Bodypack Receivers 2 x SE215 Sound Isolating Earphones Includes Detachable 1/4 Wave Antenna Rackmount and Hardware Kit BNC Cable and Bulkhead Adapter External Power Supply, 4 x AA Batteries 2 x Zipper Bags 6 x Pairs of Flex Sleeves 2 x Drawstring Pouches Specifications: Performance Frequency Range H20: 518-542 MHz RF Output Power 10, 20, 30 mW Note: varies by region RF Output Impedance 50 Ohms (typical) Transmission Range 300′ (90 m) Audio Input Connector Type 1/4″ TRS (6.35 mm) Polarity Tip positive with respect to ring Configuration Electronically balanced Impedance 40 kOhms (actual) Nominal Input Level Switchable, 4 dBu, -10 dBV Maximum Input Level 4 dBu: 22 dBu -10 dBV: 12.2 dBu Pin Assignments Tip=hot, Ring=cold, Sleeve=ground Phantom Power Protection Up to 60 VDC Audio Output Connector Types 1/4″ TRS (6.35 mm) Configuration Electronically balanced Impedance Connected directly to inputs General Antenna 1/4 wave, detachable Power Requirement 12 to 15 VDC, 260 mA maximum Dimensions 1.7 x 7.8 x 6.8″ (43 x 198 x 172 mm) Net Weight 27.6 oz (783 g)
