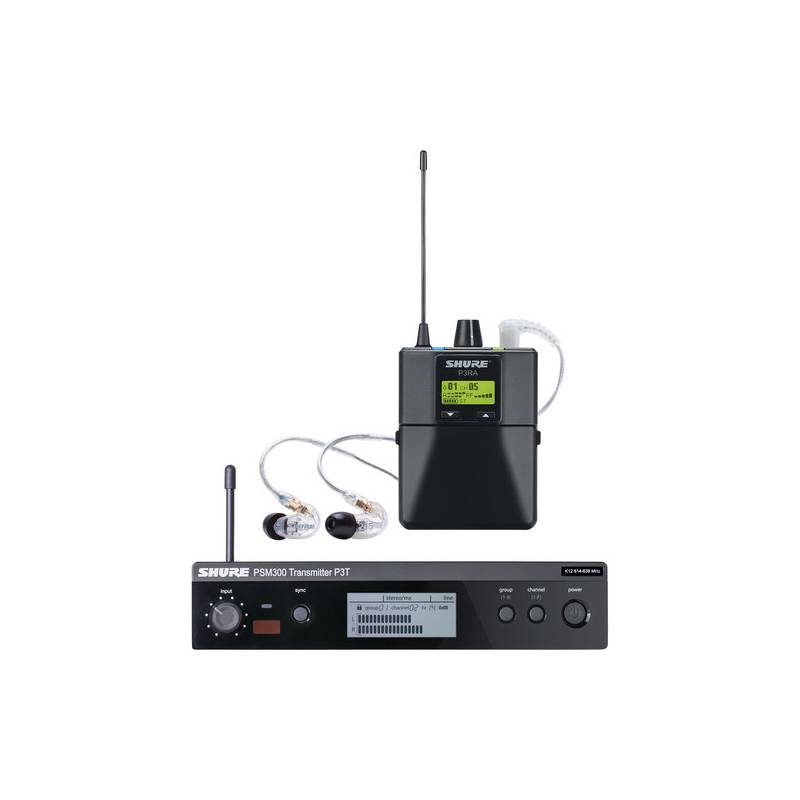

Shure P3TRA215CL-G20 PSM300 System – Rechargeable with SE215-CL Earphones
$39.08
$51.19
Features of the Shure P3TRA215CL-G20 PSM300 System – Rechargeable with SE215-CL Earphones: For Live Stage, Theater 24-Bit Digital Audio P3T Transmitter P3RA Receiver Includes SE215 In-Ear Monitors Over 300′ Coverage Range One-Touch Scan and Sync Features Specifications: Performance Frequency Range G20: 488-512 MHz RF Output Power 10, 20, 30 mW Note: varies by region RF Output Impedance 50 Ohms (typical) Transmission Range 300′ (90 m) Audio Input Connector Type 1/4″ TRS (6.35 mm) Polarity Tip positive with respect to ring Configuration Electronically balanced Impedance 40 kOhms (actual) Nominal Input Level Switchable, 4 dBu, -10 dBV Maximum Input Level 4 dBu: 22 dBu -10 dBV: 12.2 dBu Pin Assignments Tip=hot, Ring=cold, Sleeve=ground Phantom Power Protection Up to 60 VDC Audio Output Connector Types 1/4″ TRS (6.35 mm) Configuration Electronically balanced Impedance Connected directly to inputs General Antenna 1/4 wave, detachable Power Requirement 12 to 15 VDC, 260 mA maximum Dimensions 1.7 x 7.8 x 6.8″ (43 x 198 x 172 mm) Net Weight 27.6 oz (783 g) Shure P3RA Wireless Bodypack Receiver for PSM300 System (G20: 488-512 MHz) Specs Frequency Range G20: 488-512 MHz RF Sensitivity Active: 2.2 μV (at 20 dB SINAD) Image Rejection > 90 dB Adjacent Channel Rejection > 60 dB Intermodulation Attenuation > 50 dB Blocking > 60 dB Audio Output Power 80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms) Minimum Load Impedance 16 Ohms Headphone Output 1.8″ (3.5 mm), stereo Continuous Battery Life 4 to 5.5 hours, AA batteries 5.5 to 7 hours, SB900 battery (available separately) Dimensions 3.8 x 2.5 x 0.9″ (99.0 x 66.0 x 23.00 mm) Net Weight 6.9 oz (196 g), with batteries Shure SE215 Sound-Isolating In-Ear Stereo Earphones (Clear) Specs Headphone Earpiece Design In-Ear (Intra-Aural), Closed-Back Earpiece Connection / Wearing Style Wired Driver Type Dynamic Number of Drivers 1, per Earpiece Impedance 17 Ohms Active Noise Cancellation No Performance Frequency Response 22 Hz to 17.5 kHz Sensitivity 107 dB SPL/mW at 1 kHz Wired Connectivity Audio Connector to Source 1 x 1/8″ / 3.5 mm TRS Right-Angled Connector Plating Gold Adapter (Included) None Cable Design Y-Type Audio Connector to Earpiece 2 x MMCX Cable Length 5.2′ / 1.6 m Cable Color Black Physical Color Clear Water Resistance None Weight 1.1 oz / 30 g
