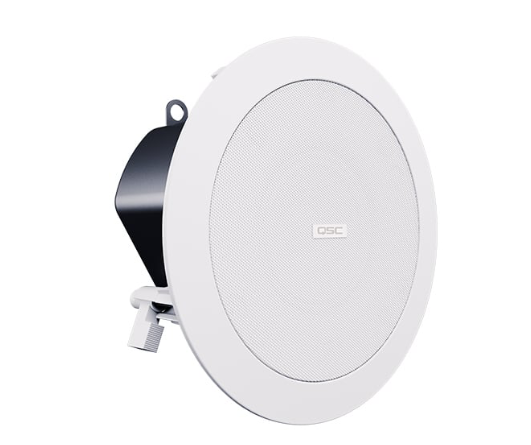

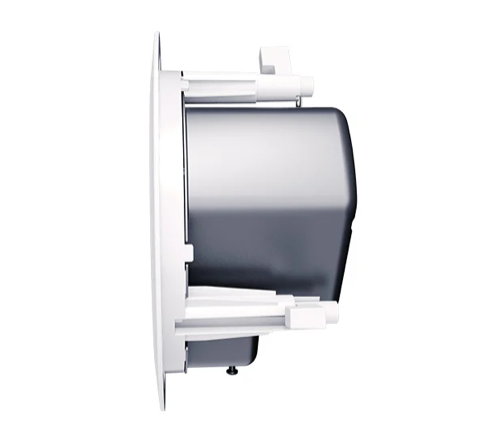

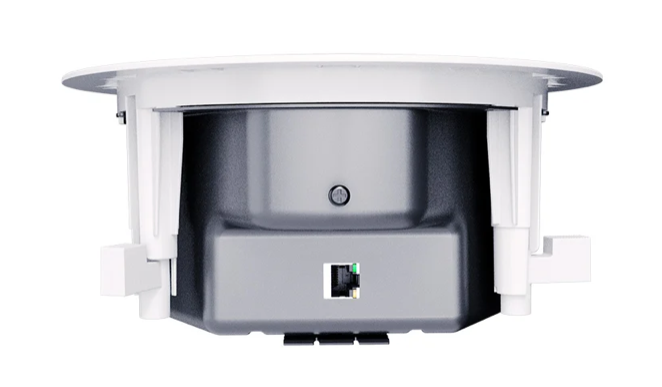

Features of the Network PoE Loudspeaker: 4-inch full-range paper cone driver with ferrite magnet Power over Ethernet (PoE) enables power, audio, and control over a single cable Consistent tonal characteristics across the NL Series for flexible deployment Seamless integration and management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager Intrinsic Correction™ voicings applied automatically by Q-SYS to simplify tuning Snap-fit magnetic grille with removable logo for a clean appearance Included accessories: C-rings, tile rails, rail screws, cut-out template, and grille Available in white (RAL 9010) Specifications: Loudspeaker Type: Network PoE ceiling-mount loudspeaker for Q-SYS Driver: 4-inch (101.6 mm) full-range, paper cone woofer, ferrite magnet Effective Frequency Range: 100 Hz to 20 kHz Rated Noise Power / Voltage (W rms): 12 W (PoE), 24 W (PoE ) Rated Coverage (-6 dB): 120° Directivity Factor (Q): 3.8 Directivity Index (DI): 5.8 dB Maximum Continuous SPL: 94 dB (PoE), 97 dB (PoE ) Maximum Peak SPL: 108 dB (PoE), 111 dB (PoE ) Input Connector Type: RJ45, Q-LAN Enclosure Material: ABS baffle on powder-coated steel back can Grille Material: Powder-coated steel Ingress Protection: IP34 Cutout Dimension: 7.1 inches (179 mm) hole diameter Net Weight: 3.5 lbs (1.6 kg) Product Dimensions (Diameter x Height): 8.46 x 4.13 inches (215 x 105 mm) Operating Environment: Designed for indoor use Operating Temperature Range: 10° to 40° C
