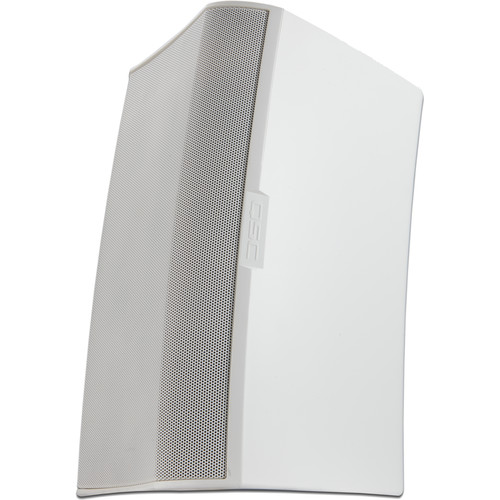

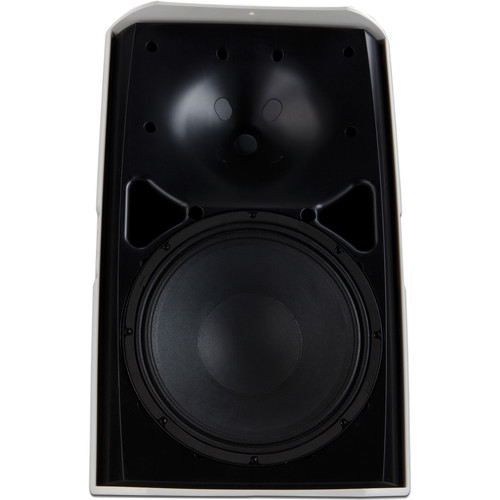

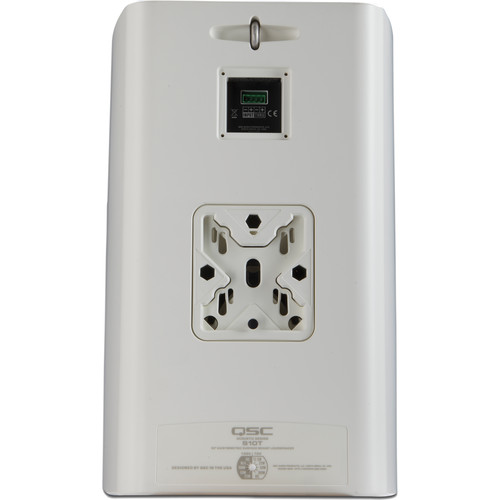

Features of the 10in Speaker: 10” weather treated woofer; 1.4” compression driver 90° conical DMT coverage 100 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass Maximum peak SPL 122 dB (8 ohm bypass) DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time Optional Yoke mount and M10 Kit-C for additional installation versatility Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS processing or CXD amplifier platforms Lightweight ABS enclosures offer long-term durability and lasting good looks Sealed input panel cover and powder coated aluminum grilles for added weather resistance Meets IEC60529 IP-54 for dust and splash resistance Available in black (RAL 9011) or white (RAL 9010) Complete EASE, CF2, CAD, and BIM information available online
