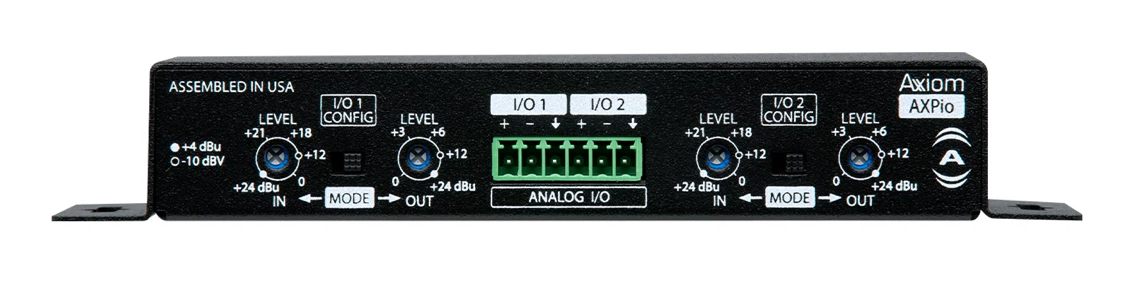

Q-SYS AXPIO 2-Channel Analog Expander for Axiom Wallplates

Features of the 2-Channel Analog Expander: Two balanced line-level Flex I/O ports supporting 2×0, 1×1, or 0x2 audio extension configurations Supports up to 24 dBu analog audio signal levels on inputs and outputs RS-232 port for control system integration, extending control to supported Axiom products Compact design suitable for rack shelves or flat surface mounting LED indicator for power status monitoring Specifications: Description: Analog audio input/output extender with RS-232 control Audio Inputs/Outputs: Two balanced line-level Flex I/O on 3.81 mm depluggable terminal block connectors Input Gain: -4 dB to 20 dB Output Gain: 0 dB to 24 dBu Maximum Input Level: 24 dBu Maximum Output Level: 24 dBu Axiom Port: Supports analog audio, RS-232 control, and 24 V DC power via 8P8C connector Power Requirements: 24 VDC @ 100 mA Dimensions (H x W x D): 2 x 10 x 5 inches (51 x 254 x 127 mm) Weight: 0.8 lbs (0.4 kg)
