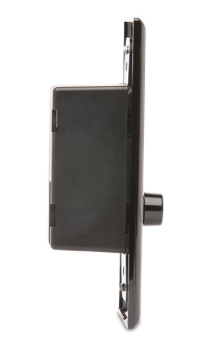

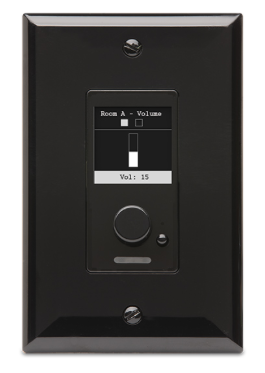

Features of the Wall Controller: Ethernet-based control solution for Q-SYS and other third-party AV products supporting UDP, TCP/IP control Available Q-SYS Extension for control mapping – no programming required Menu customization with unIFY Control Panel software High-contrast OLED display provides easy-to-read menus and status Intuitive controls facilitate simple user experience over assigned AV system functions Assignable LED light bar provides optional feedback for zone level and system state Includes black and white inserts and decora wall plates Specifications: Description: Single-gang networked audio controller Display: High-contrast OLED Control Interface: Rotary encoder with push-button functionality Network Connectivity: 10/100 Mbps Ethernet, IEEE 802.3af PoE Mounting: Single-gang, Decora-style in-wall mount Dimensions (H x W x D): 4.1 x 1.8 x 1.4 inches (104 x 46 x 36 mm) Weight: 0.3 lbs (0.14 kg) Operating Temperature: 32° to 104° F (0° to 40° C) Compliance: FCC Part 15 Class A, CE, RoHS
