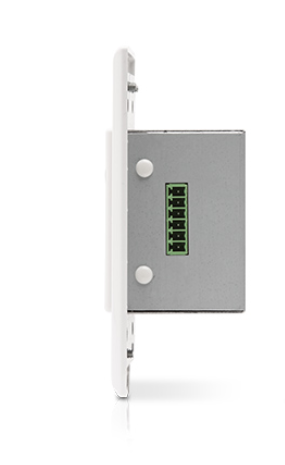

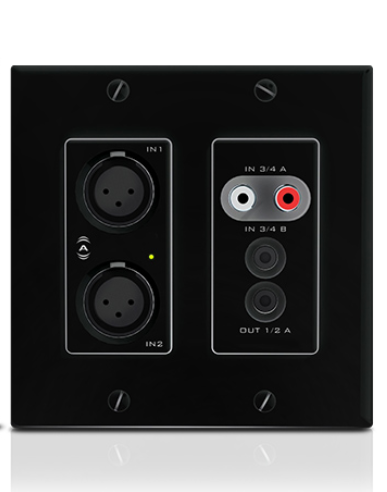

Features of the Audio Wall Plate: Two balanced XLR mic/line inputs with software-selectable gain settings (-18 dB, -3 dB, 25 dB, 40 dB) Two unbalanced stereo line inputs: one on RCA connectors, one on a 3.5 mm TRS connector Two balanced line outputs on a side-mounted 6-pin de-pluggable Phoenix connector 802.3af compliant PoE powered for single-cable connectivity 48V phantom power per channel, software selectable Compatible with Dante Domain Manager™ Compact form factor suitable for standard dual-gang US junction boxes Specifications: Audio Inputs: 2x XLR (balanced and RF filtered), 2x RCA (stereo unbalanced), 1x 3.5 mm TRS (stereo unbalanced) Input Gain: -18 dB, -3 dB, 25 dB, 40 dB (software selectable for XLR inputs) Phantom Power: 48V, software selectable (XLR inputs only) Audio Outputs: 2x balanced line level on 6-pin de-pluggable Phoenix connector, 1x unbalanced line level on 3.5 mm TRS Maximum Output Level: 20 dBu (balanced outputs), 12 dBu (unbalanced output) Dante Network: Standard Ethernet, single RJ-45 connector, 100 Mbps, supports 44.1 kHz and 48 kHz sample rates Power: 802.3af PoE powered Dimensions (H x W x D): 4.2 x 3.54 x 2 inches (106.68 x 89.91 x 50.8 mm) Weight: 0.6 lbs (0.27 kg)
