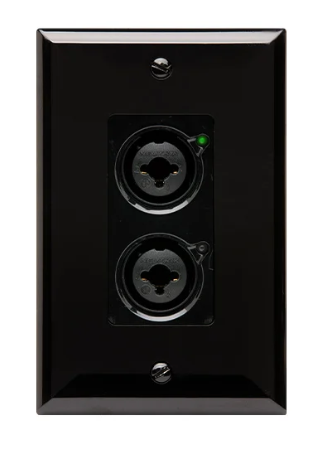

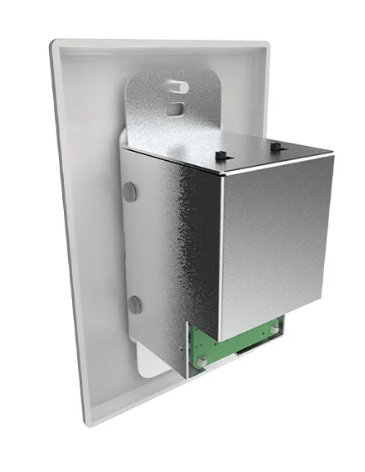

Features of the Input Wallplate: Two balanced mic/line inputs on 3-pin XLR connectors with combination ¼” TRS connectors 48 V phantom power for condenser microphones Integrated Axiom port for connecting Axiom wallplates, including RS-232 control pass-through Power over Ethernet (PoE) compliant with IEEE 802.3af Available Q-SYS Extension for simplified integration without programming Dante Domain Manager ready Includes both black and white Decora faceplates and fascia inserts Specifications: Description Single-gang Dante/AES67 network audio I/O wallplate Audio Inputs: Two balanced mic/line inputs on combination XLR/TRS connectors Gain: XLR (mic level): -8 dB to 34 dB, 1 dB steps; TRS (line level): fixed 16 dB pad accommodating up to 24 dBu input levels Frequency Response: 20 Hz to 20 kHz, ±1 dB at all attenuation settings Phantom Power: 48 V DC, software selectable Axiom Port: Supports analog audio, RS-232 control, and 24 V DC power; connector: 8P8C Network: RJ-45 connector; 100 Mbps Ethernet; supports Dante and AES67 protocols Power: Power over Ethernet (PoE), IEEE 802.3af Class 0 Dimensions (H x W x D): 4.1 x 1.8 x 1.4 inches (104 x 46 x 36 mm) Weight: 0.3 lbs (0.14 kg) Operating Temperature: 32° to 104° F (0° to 40° C) Compliance: FCC Part 15 Class A, CE, RoHS
