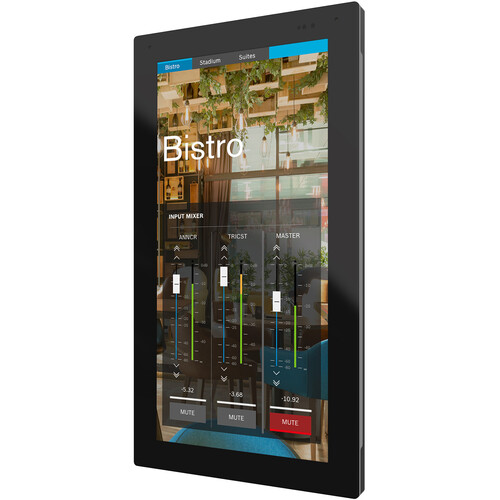

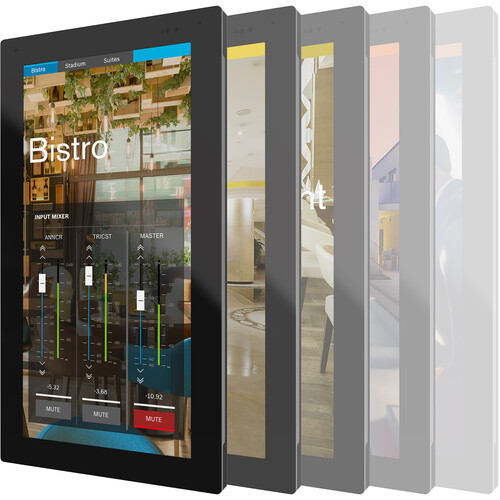

Dynacord TPC-1 5.7 inch Touch Panel Controller
$56.5
$111.31
Features of the Touch Panel Controller: Customized user control apps with SONICUE High Definition (720 x 1440) IPS 5.7″ display with 450 nits of brightness PoE, compatible with US single gang, EU and UK wall boxes Only 25.4 mm (1 inch) installation depth in wall Specifications: Display – IPS 5.7″ Resolution – 720 x 1440 px Color – 16.7 million Brightness – 450 nits Processor – NXP iMX8, 64-bit Armv8-A, quad symmetric-core ARM Cortex-A53 processor @ 1.8 Ghz Proximity sensor (max. range) – 120 cm Proximity sensor (capture range) – 25° horizontal, 25° vertical Wired network – IEEE1588 Gigabit Ethernet Power over Ethernet (POE) – IEEE PoE 802.3af compliant via LAN port Aux Power – 24 V DC (connector 5.5/2.5/12 mm), power supply not included Power Consumption – Typical 6 W, Maximum 8 W USB – USB 2.0 on the rear for service Installation – Wall-mount, US NEMA single gang, EU 65mm (IEC/EN 60670), UK BS 4662 Recommended cabling – CAT6 Operating conditions – 0°C to 45°C, max. 95% humidity Dimensions (WxHxD inside/outside wall) – 3.37 x 5.92 x 0.48 / 0.81 Inch (85.5 x 150.3 x 12.2 / 20.5 mm)
