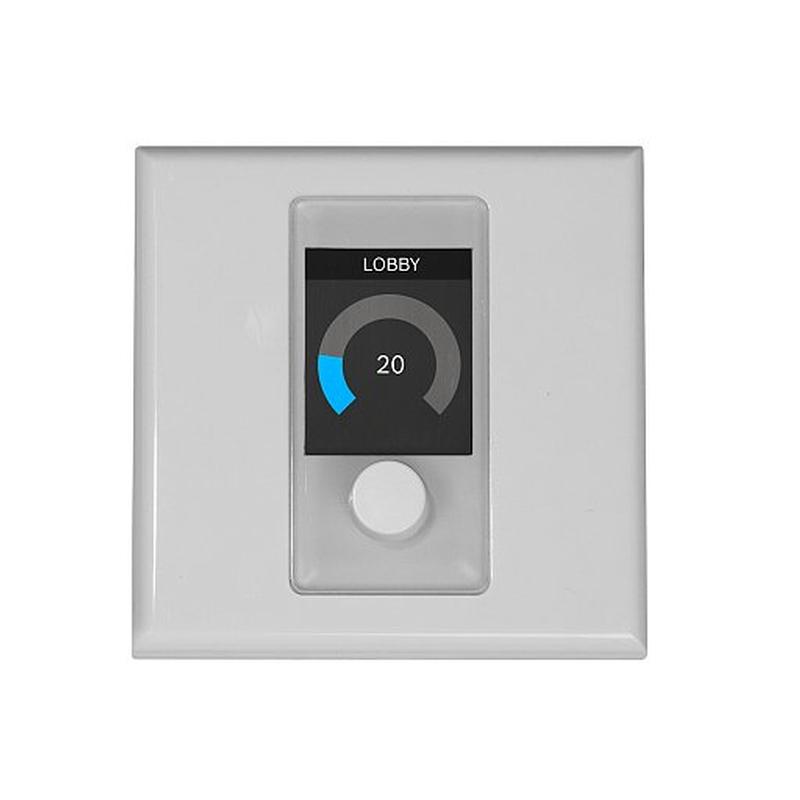

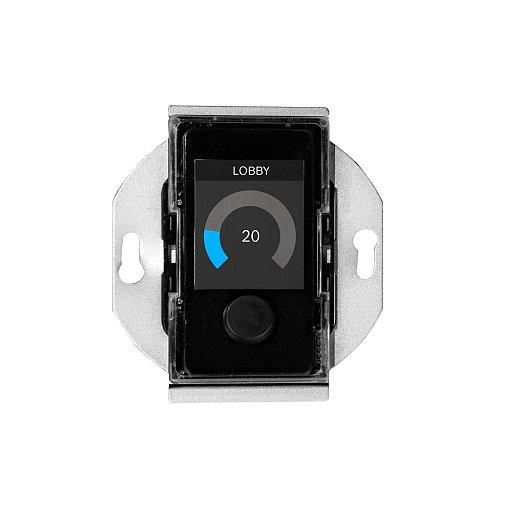

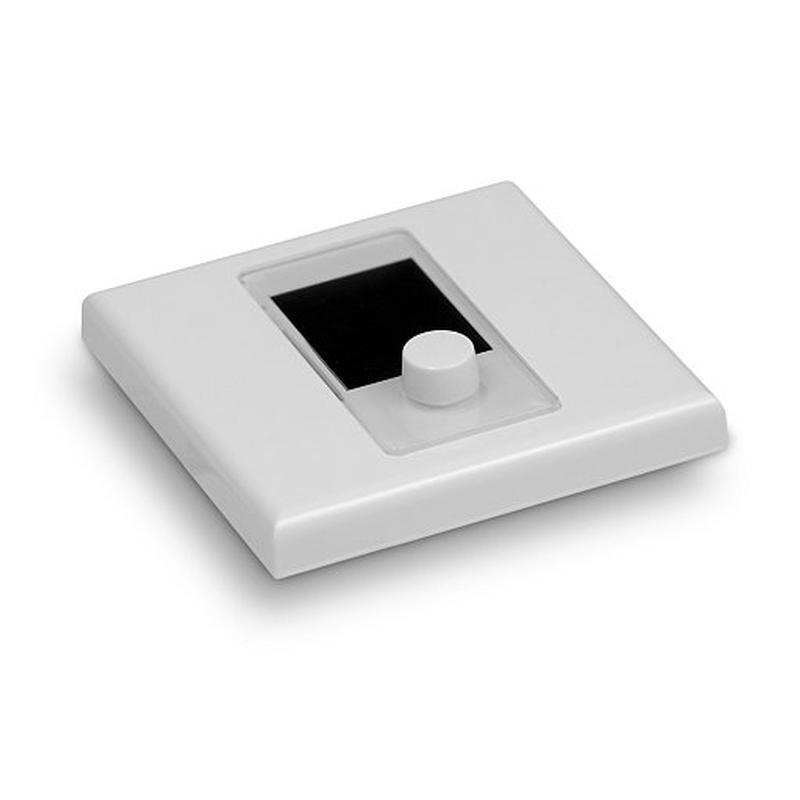

Features of the Wall Panel Controller: Easy to read 1.77” color TFT display Flexible configuration in SONICUE for systemwide control Simple mounting in standard EU or NEMA single-gang wall-mount boxes Convenient powering via PoE Interchangeable front panel (white/black) Specifications: Display type – Color TFT Display size (in) – 1.77 in Display resolution (pixels) – 160 x 128 pixels Brightness – 480 cd/m² Network – Ethernet 100BASE-TX, 1000BASE-T PoE input – PoE IEEE 802.3af PoE nominal voltage (VDC) – 48 VDC Mounting type – Wall-mounted Required box size (mm) – 62 mm diameter, ≥60 mm deep Software compatibility – SONICUE (≥1.2.4) SONICUE Control server – MXE5 Color – White, changeable to black Power consumption (W) – ≤ 1.30 W Operating temperature (°C) – 0 °C – 45 °C Operating temperature (°F) – 32 °F – 113 °F Operating relative humidity, noncondensing (%) – 15% – 93% Dimension (HxWxD) – 4.2 x 1.7 in x 1.9 inch (107.8 x 44.0 x 47.2 mm) Weight – 0.21 lb (94 g)
