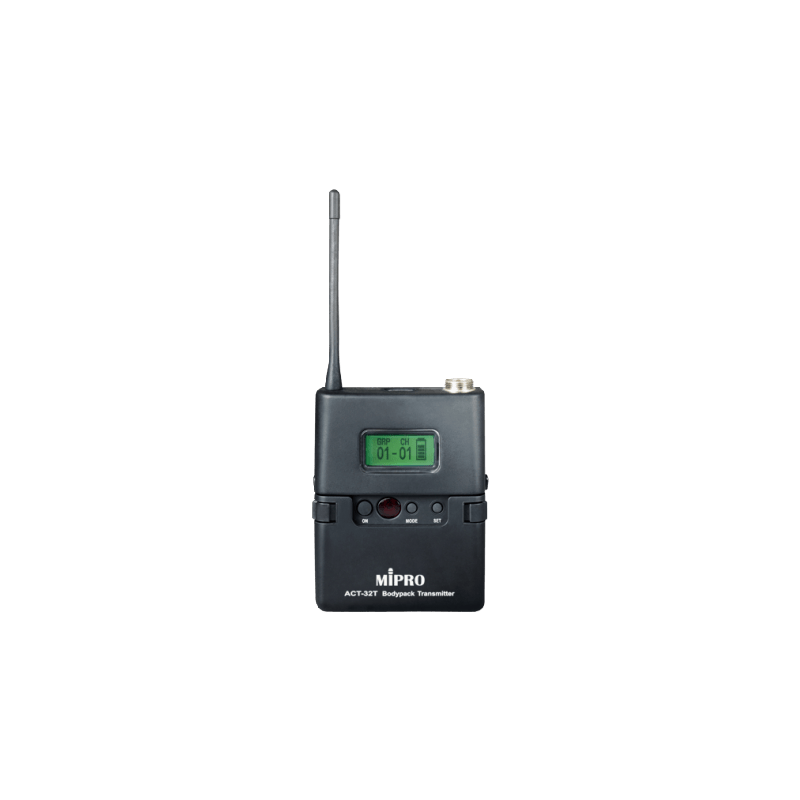

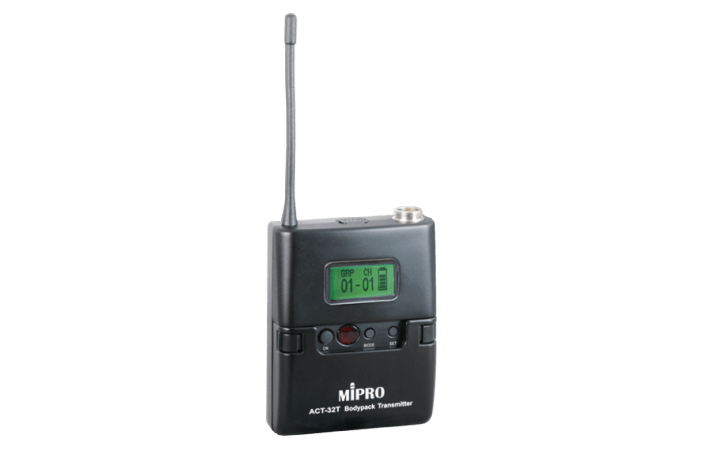

Features of the Mipro ACT-32T Miniature Bodypack Transmitter : On top of the housing is equipped with an antenna, mute button and mini XLR connector. The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. A remote-control mute jack is for easy activation of the mute function. An LCD on the panel displays the working channel, battery status and operating information. Powered by two AA alkaline batteries. Innovatively designed battery cover allows easy access to operate buttons and prevent accidental operation. High/low impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion. Specifications: Mic Capsule Modules Paired lavalier mic MU-55L or optional other MIPRO’s lavalier and headworn mic capsule modules. Max. Audio Input 0 dBV Display Green backlit LCD Frequency Range UHF 480 ~ 934 MHz (country dependent) Bandwidth 24 MHz Input Impedance Setting High impedance RF Power Output 10 mW / 50 mW switchable (country dependent) Spurious Emission < 4 nW Battery Two AA alkaline Dimensions 63 × 82 × 22 mm (W×H×D) Weight Approx. 86 g Note Refer to the actual product in the event of product discrepancy.
