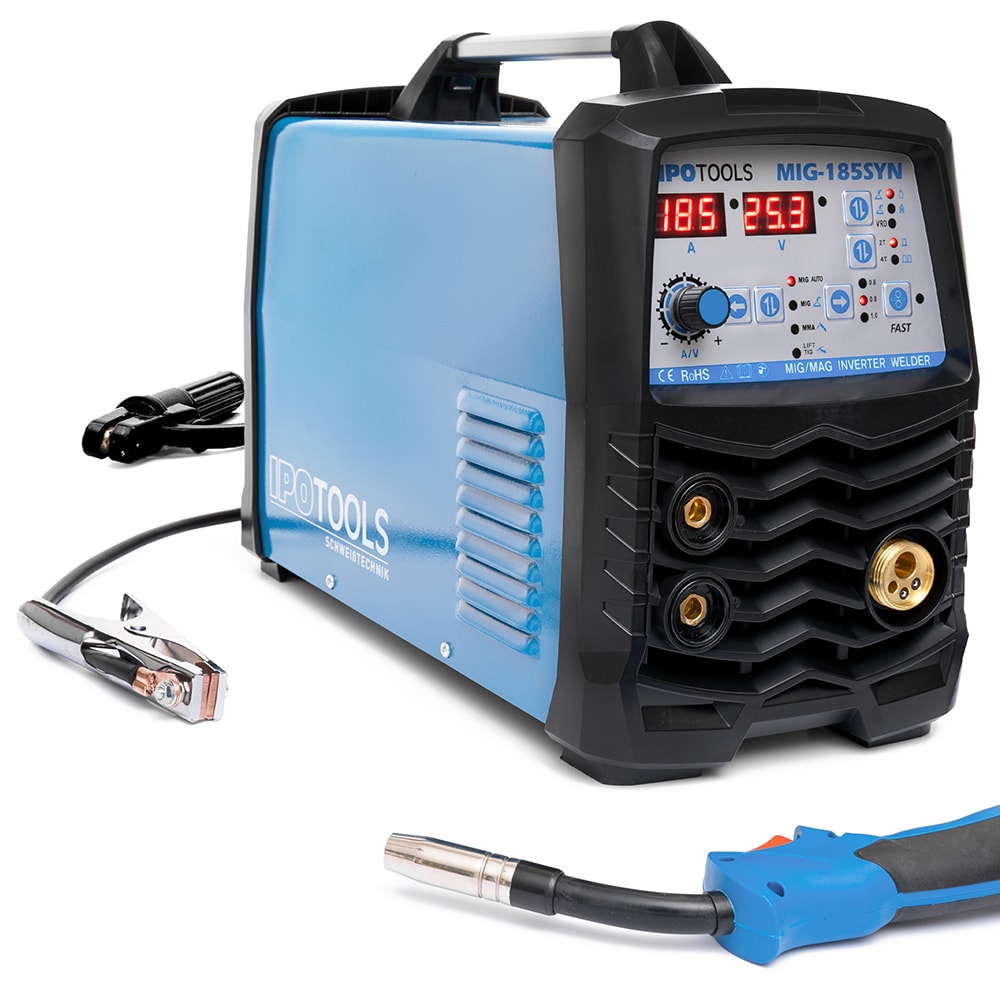

IPOTOOLS MIG 185SYN – Synergic Inverter Welder

–                                              Synergic inverter welding machine The MIG-185SYN is a high-quality and perfectly designed 3in1 MIG MAG welder with a digital display, which convinces with functionality, ease of use, and outstanding quality in its class! VIDEO TUTORIAL More videos about the deviceFUNCTIONS MIG MAG welding Direct current (DC) gas protection welding with inert gas “MIG welding” (e.g. – argon) or with active gas “MAG welding” (a mixture of carbon dioxide CO2 and argon) Welding with FLUX cored wire Welding with FLUX cored wire (welding without protective gas) Synergic MIG MAG Variant of pulse MIG MAG welding, where the welding parameters are already preprogrammed MMA Electrode welding up to 185A Digital display Digital control of the individual welding parameters Inverter Modern IGBT technology, which provides high power and long duty cycle With this synergic inverter welding machine, you can optimally process all common materials with high-quality welding results, namely steel, stainless steel, aluminum, and aluminum alloys. The welding current is stable and continuously adjustable. The device produces a beautiful weld, whereby the welding process happens with low spattering and quietly thanks to the two fans. – Synergic inverter welding machine MIG 185 SYN – TECHNICAL DATA Type: MIG MAG Inverter Welder 185SYN Processes: DC MIG/MAG, MMA, FLUX-cored welding Power supply: 230V 1-Phase Frequency: 50/60Hz Housing protection degree: IP21S Overvoltage protection: Yes Cooling: Fan Solenoid valve: Yes MIG duty cycle: 185A–60% / 132A–100% MMA duty cycle : 185A–60% / 132A–100% Welding current MIG: 40-185A Welding current MMA: 40-185A Wire coils Ø MIG: 200mm Wire feed unit MIG: 2 rolls (1 with drive) Wire feed (max. speed): 15m/min Welding wire diameter: 0,6mm / 0,8mm / 0,9mm / 1,0mm (0,8/1,0mm) Electrode diameter MMA: 1-4mm Dimensions (LxWxH): 450x220x350mm Weight: 11 kg – Synergic MIG MAG Welding Synergic MIG (GMAW) welding is a variant of pulsed MIG welding, and the most common method- simply because it’s the easiest way for welders to set good welding parameters. Always ensure the best welding result by creating a strong and homogeneous weld using the Synergic function! In modern welding processes, the arc quality has been continuously improved and optimized. In order to achieve this quality, many parameters must be particularly well matched to each other, but this is enormously difficult to achieve with manual adjustment. Thanks to the Synergic function, these parameters are pre-programmed depending on the wire diameter and gas combination, which makes welding easier and ensures an optimal weld. Universal device for beginners or professionals Synergic inverter welding machine MIG-185SYN is a very attractive synergic welder that offers complete control when setting all welding parameters with its clear and feature-rich digital display. The unit is built to be very efficient and robust, and at 15 kilograms, it is also extremely lightweight, which also translates to its greater durability. There is also a carrying handle on the top of the unit, which helps you be ready wherever you are by making it easy to transport. Whether you’re a DIYer or a professional, this 3-in-1 unit will help you easily master all welding tasks, including FLUX-cored welding. The high-quality 3-meter hose package and 2.5-meter electrode holder and ground clamp provide you with enough mobility to enjoy the best working comfort. Synergic inverter welding machine 185 SYN – Clearly arranged control panel On the control panel, you can set the following welding parameters depending on the wire diameter and gas combination: Wire feed speed Welding current for MIG MAG / MMA / LIFT TIG Protection gas selection: CO2 / Argon / FLUX cored wire (without gas) Welding wire diameter (mm): 0.6 / 0.8 / 1.0 Fast Wire feed 2T / 4T operating mode Ind – Inductance (concentration of the arc) Arl – arc length (adjustable deviation of voltage) VRD – (Safety function: lowering the open circuit voltage) MMA functions: Hot Start / Arc Force / Anti Stick /Synergic inverter welding machine MIG 185 SYN – CONTROL PANEL / 1. Digital display 1 Amper selected parameters 2. Digital display 2 Voltage selected parameters 3. Selection With gas / Without gas / VRD 4. Selection 4T / 2T 5. Button Fast wire feed 6. Wire diameter selection 0.6mm / 0.8mm / 1.0mm 7. Welding mode selection MIG AUTO / MIG / MMA / LIFT TIG 8. Selection Ind – Inductance (concentration of the arc) Arl – arc length (adjustable deviation of voltage) VRD – (Safety function: lowering the open circuit voltage) MMA functions: Hot Start / Arc Force / Anti Stick 9. Rotary button For setting the selected parameters Wire feed The MIG 185SYN is equipped with a high-quality metal wire feeder, which grips 2 rolls of max. 200mm diameter with a wire diameter of 0.8 – 1.0mm. At the same time, one of the rollers of the wire feeder is also motor-driven, which guarantees you a smooth and controlled wire feed. The device also has a wire drive button, with which you can push the welding wire up to the torch very fast when changing it. FLUX cored welding Flux-cored welding is a process that combines good handling, flexibility and cost-effective equipment. Flux cored wire allows you to produce fine and consistent welds in a short time and has the advantage that no additional protection gas is needed. To convert to flux cored welding, you only need to change the polarity, which can be easily reversed; simply swap the polarity of the gun and the ground cable to the negative pole. IPOTOOLS quality! Today, IPOTOOLS equipment is synonymous with many years of experience, continuous development in the field of MIG TIG welders and plasma cutters, as evidenced by thousands of satisfied customers. Take a look at our range of IPOTOOLS equipment, we will be glad to help you with your choice! – IPO Technik-Handels GmbH grants all customers a 7-year guarantee for all welding machines and / or plasma cutters that were purchased directly from IPO Technik-Handels GmbH of the IPOTOOLS brand. You can find warranty conditions here: warranty conditions SCOPE OF DELIVERY 1x 3in1 welding machine MIG-185SYN 1x MIG hose package MB15 with accessories 3m 1x Electrode holder 2.5m 1x Ground clamp 2.5m 1x Welding shield 1x Slag hammer with brush 1x Instruction manual
