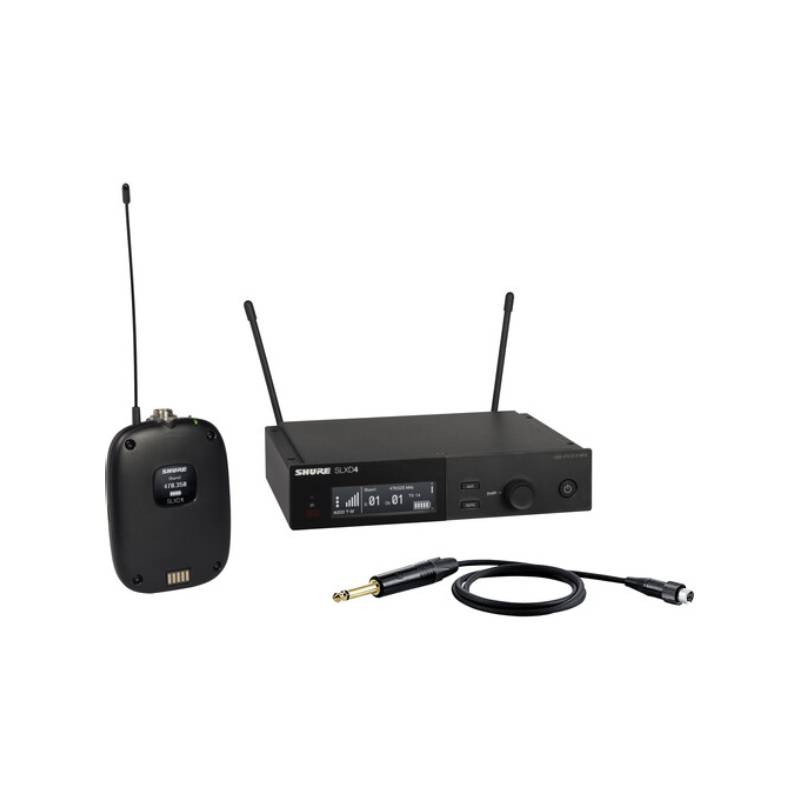

Shure SLXD14-H55 Wireless Instrument System with WA305 Instrument Cable

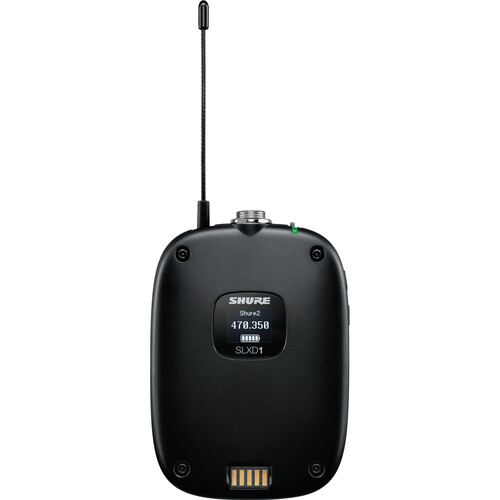

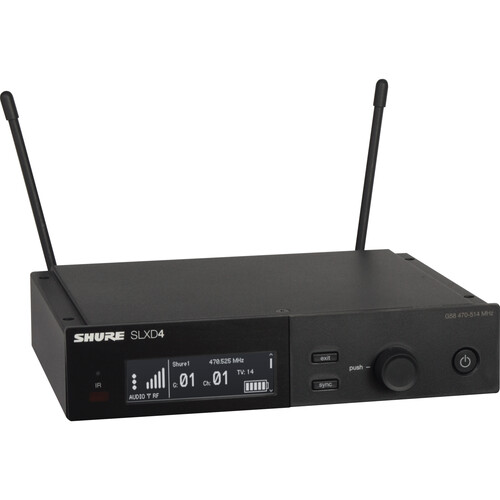

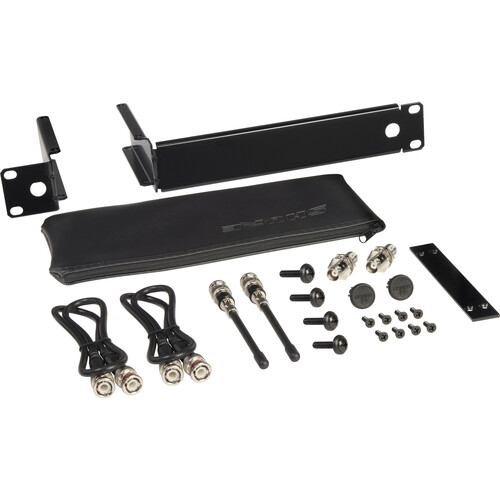

Features of the Shure SLXD14-H55 Wireless Instrument System with WA305 Instrument Cable: For Guitar and Bass Players WA305 Premium Instrument Cable Lightweight Bodypack Transmitter Digital Predictive Diversity Receiver 1760 Auto-Scan Frequencies 1/10mW RF Power High-Contrast LCD Screens Ethernet for Group Scans & Local Control Compatible with 8-Hr Rechargeable SB903 Expandable to 32 Mic Channels/330′ Range Specifications: System Wireless Technology Digital UHF Number of RF Channel Frequencies 1760 Included Transmitters 1 x Bodypack with Cable Diversity True Digital Diversity RF Frequency Band H55: 514 to 558 MHz RF Bandwidth 44 MHz Frequency Step Size 25 kHz RF Channel Scanning Auto-Scan Max Operating Range 328′ / 100 m Max Transmitters per Band 32 Sample Rate/Resolution 24-Bit Latency 3.2 ms Dynamic Range 120 dBA (Typical) Receiver Receiver Type Tabletop / Rackmount Mounting Options Rackmount (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2 x 1/4 Wave External, BNC (Rear-Mount) Number of Audio Channels 1 Audio I/O 1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4″ TRS Female Balanced Output Gain Range 0 to 21 dB (3 dB Steps) Pad 30 dB Audio Output Level -18 to 42 dB (Balanced, Unbalanced) Frequency Response 20 Hz to 20 kHz 1/-2 dB (Dependent on Mic) Impedance 1/4″ Output: 1.3 Kilohms (Balanced) 670 Ohms (Unbalanced) XLR Output: 400 Ohms (Balanced) 150 Ohms (Balanced) Approximate RF Sensitivity -97 dBm Adjacent Channel Isolation >70 dB Spurious Rejection: >75 dB Power Requirements AC/DC Power Adapter AC/DC Power Adapter 15 VDC at 600 mA, Center-Positive (Included) AC Input Power 100 to 240 VAC, 50 / 60 Hz Display & Indicators LCD (AF Level, Channel, Frequency, Group, RF Level, Transmitter Battery Status) Housing Steel Operating Temperature 0 to 122°F / -17 to 50°C Storage Temperature -20 to 165°F / -28 to 73°C Dimensions 7.8 x 1.7 x 6″ / 197 x 42 x 152 mm Weight 1.8 lb / 816 g (without Antenna) Transmitter Transmitter Type Bodypack with Cable RF Output Power 1 / 10 mW Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable) Included Cable Connector 1/4″ TS Pad None Muting None Gain Range 0 21 dB Signal Processing None Sync Method IR Antenna 1/4 Wave External, Fixed Power Requirements Battery Battery Type 2 x AA (Included) 1 x Shure SB 903 (Not Included) Battery Charging Time 1.25 to 5.5 Hours Approx. Battery Life 8 Hours (Lithium Shure SB903) USB/Lightning Connectivity None Display & Indicators LCD (Battery Status, Channel, Group) Housing ABS, Plastic Operating Temperature 0 to 122°F / -17 to 50°C Storage Temperature -20 to 165°F / -28 to 73°C Dimensions 2.7 x 3.9 x 1″ / 68 x 98 x 25.5 mm Weight 3.1 oz / 89 g
