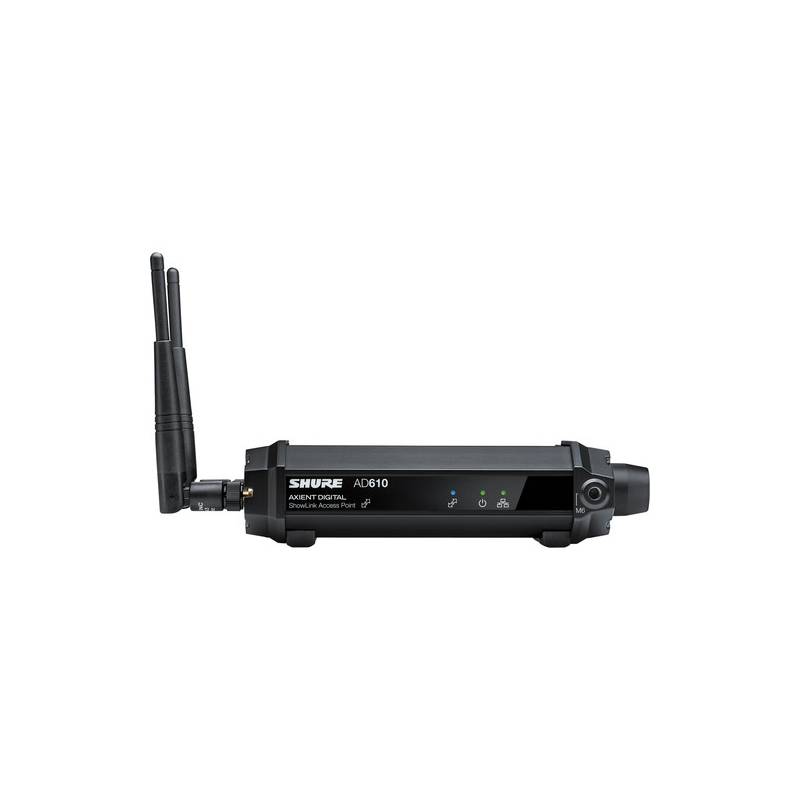

Shure AD610 Showlink Access Point for Axient & Axient Digital

Features of the Shure AD610 Showlink Access Point for Axient & Axient Digital: For ADX and AXT Transmitters 2.4 GHz Wireless Communication Up to 24 Transmitters per Access Point Specifications: Shure AD610 Specs Antennas 2 x Omnidirectional 2.4 GHz Capacity 24 Axient ShowLink transmitters (AXT or ADX models) Network Type IEEE 802.15.4 Frequency Range 2.40 to 2.4835 GHz (16 channels) RF Output Power 10 dBm ERP / 20 dBm ERP Working Range 500 to 1600′ / 150 to 500 m Antenna Connector 2 x SMA Antenna Impedance 50 Ohms RF Sensitivity -106 dBm, typical (integrated antenna) Network Interface Ethernet 10/100 Mb/s Network Addressing Capability DHCP or manual IP address Mounting WA371 microphone clip or 1/4″-20 thread mount Power Requirement Power over Ethernet (PoE) Class 1: 36 to 57 VDC/VAC External Power Supply: 15 VDC, 600 mA, double insulated Certifications WEEE Directive 2002/96/EC, as amended by 2008/34/EC RoHS Directive 2011/65/EU Housing Extruded aluminum Protection Rating IPX3 Operating Temperature 0 to 140°F / -18 to 60°C Storage Temperature -20 to 165°F / -29 to 74°C Dimensions 7.4 x 4.0 x 1.8″ / 19.0 x 10.2 x 4.7 cm without antennas Weight 16.3 oz / 464 g without antennas
