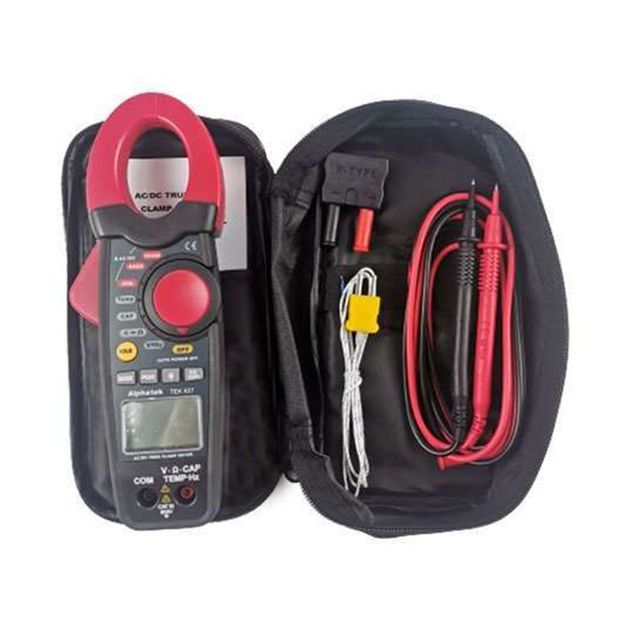

Alpratek TEK837 is a professional True RMS clamp meter that provides accurate AC, AC/DC Current, and Voltage readings regardless of waveforms. These meters can be used in most industrial and commercial applications where non-linear loads distort the Current or Voltage waveform. Features: - True RMS measurement of AC Current and AC Voltage - Large 4000 count LCD display with a bar graph and a bright white LED backlight. - Wide measuring range from 0.01A AC/DC up to 1000A AC/DC - Measures resistance from 0.01? up to 40M? - Measures AC and DC Voltage up to 600 volts - Capacitance measurements up to 40mF - Temperature measurement from -40ºC to 1000ºC and -40ºF to 1832ºF - Designed to the international safety standard IEC61010 CAT III 600V/ CAT II 1000V, Pollution degree 2 - Auto Power Off after approximately 20 minutes to conserve battery life - Continuity buzzer and diode test - Frequency measurement up to 4kHz - Peak Hold to record the minimum and maximum readings for current and voltage - Data Hold switch used to freeze reading on the display Package Includes: 1. Alphatek TEK837 True RMS Clamp Meter 2. Test Leads 3. Temperature Probe 4. 9V Battery 5. Carry Case Specifications: Clamp size: 30mm Opening Approx. Diode test: Test current of 0.3mA typical, Open circuit voltage 1.5VDC Continuity check: Threshold Input Impedance: 10MO (VDC and VAC) Display: 4000 count LCD Overvoltage category: Category III 600V Battery: 9V Auto Power Off: Approx. 20 mins Dimensions: 229 x 80 x 49mm Weight: 303g
