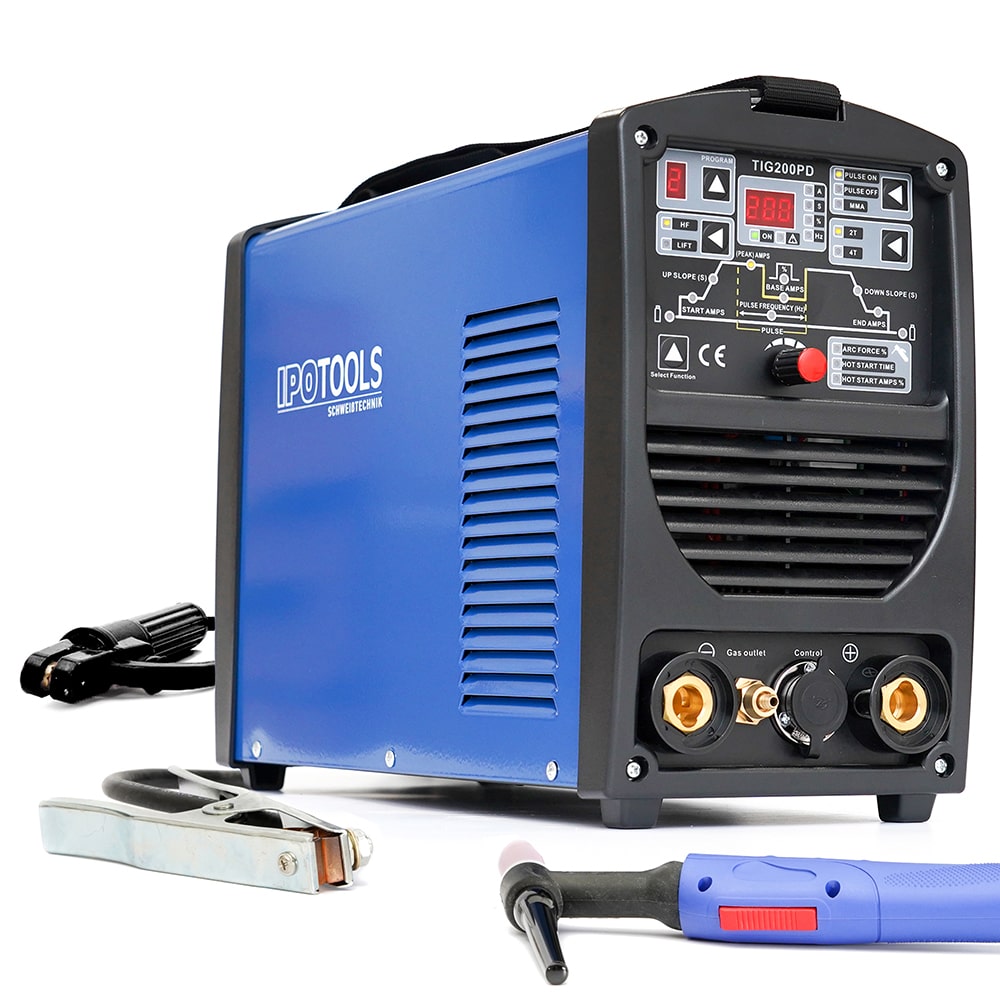

IPOTOOLS 200PD – Inverter TIG welder DC

– TIG machine DC – 200PD is a high-quality TIG inverter welder DC that leaves nothing to be desired. A perfectly thought-out device ideal for beginners or professionals, which convinces with performance and excellent quality! More videos about the device– TIG machine DC 200 PD – WELDING PROCESS TIG Welding Welding with DC – direct current MMA / STICK Welding with stick electrode up to 160A – TIG machine DC 200 PD – TECHNICAL DATA Process: full digital TIG DC, MMA/STICK Touch panel: job memory, stepless pulse function, stepless variable frequency, etc. Power supply: 230 V /50-60 Hz Mains fuse (slow blow) min. 20 A (22A) Settings: digital continuous Adjustment range DC TIG: 5 – 200 A Adjustment range MMA: 5 – 160A Duty cycle TIG DC: 200A – 35% / 160A – 60% / 130A – 100% Duty cycle MMA: 160A – 30% / 130A – 60% / 100A – 100% Pulse frequency: 0,5-500Hz Recommended electrode diameter: MMA 1,0-3,2mm / TIG 1,0-2,4mm Insulation class: F Housing protection degree: IP 23 Dimensions (LxWxH): 335x165x290mm Weight: 9,2 kg Foot pedal: It is also possible to connect a foot pedal   TIG welder DC 200 PD – FUNCTIONS   Job memory 9 settings can be stored Digital display Control panel with display PULSE Adjustable pulse frequency High duty cycle Long duty cycle HF ignition Ignition without contact Inverter IGBT technology – Universal device for beginners or professionals TIG machine DC, with a proud 200A, the IPOTOOLS TIG160PD will allow you to master all welding jobs with perfect results, while not limiting your mobility, as the 3m hose package provides enough maneuvering space to guarantee the best possible working comfort. The compact unit is very light at 9,2 kg and is designed to be very practical for transport with the shoulder strap, and belongs to the new generation of welders controlled by a 32-bit microprocessor, making it even more efficient and economical, while the job memory allows you to access your custom settings at any time. Clearly arranged control panel – TIG machine DC 200 PD With the digital display on the IPOTOOLS TIG 200 PD you determine the stepless pulse function and variable frequency, which allows you to weld metals such as steel, stainless steel, titanium, copper, and copper alloys very comfortably and in a controlled manner using the DC direct current method. TIG machine DC 200 PD – TIG WELDING FUNCTIONS 2T / 4T mode – Depending on your habit, you can choose between the two settings. When welding, if the switch is set to “2T mode”, the torch button must remain pressed throughout the welding process, whereas in “4T mode” you only need to briefly press the switch at the beginning and end of the welding process. HF ignition – In most cases, HF high frequency ignition is used in TIG welding. It is a non-contact ignition that creates an arc without having to touch the workpiece with the electrode. TIG / Pulse Switch – Allows switching between TIG Pulse Welding and normal TIG welding. Welding current – the amperage during welding. Pulse Welding – In pulse welding, the welding current alternates between base current and pulse current at the desired frequency. The longer the intervals, the less energy and heat is added to the workpiece. By setting the pulse frequency, you determine the time cycle in which the current alternates between pulse and base current. You can also set the percentage of the duration of the pulse current in relation to the base current. Memory slots – The device has 9 memory slots for storing the set welding parameters, which you can pull up at any time. Current Rise (Upslope) – You can set this to 0, which means that the unit ignites the arc directly to the set welding current. However, if the set start current is lower than the welding current, the upslope can be set in seconds. In this case, when the torch is operated, the arc ignites at the start current and then increases linearly during the set time until it reaches the set welding current. Downslope – Exactly the opposite of the upslope, the time during which the current is automatically decreased. Start Current – The start current allows you to star the unit softer, ignite with the start current, and then increase the current to the weld current. This is especially beneficial when welding thin sheets. End Current – As long as the downslope current has been set, the end current is the one at which the arc goes out. Also compatible with 4T mode. Gas preflow Time – This feature allows you to set the time in seconds for gas preflow, which pushes ambient air away from the weld and creates a protective gas atmosphere before welding begins. Gas postflow time – The time during which, after the welding process, the torch and the workpiece are cooled by the gas flow. TIG machine DC 200 PD – CONTROL PANEL STICK Welding With the 200PD is also the MMA/STICK welding with a covered stick electrode no problem for you, and thanks to the Arc-Force you can adjust the welding current to different arc lengths. The device is also equipped with the STICK functions Hot-Start and Anti-Stick, which prevent the electrode from sticking. HF ignition & PULSE Function In addition to all functions, the TIG welding machine DC is also equipped with HF high-frequency ignition so you do not need to touch the workpiece, and thanks to the PULSE function, there is also significantly less heat damage to the material. IPOTOOLS quality! Today, IPOTOOLS equipment is synonymous with many years of experience, continuous development in the field of MIG TIG welders and plasma cutters, as evidenced by thousands of satisfied customers. Take a look at our range of IPOTOOLS equipment, we will be glad to help you with your choice! – IPO Technik-Handels GmbH grants all customers a 7-year guarantee for all welding machines and / or plasma cutters that were purchased directly from IPO Technik-Handels GmbH of the IPOTOOLS brand. You can find warranty conditions here: warranty conditions SCOPE OF DELIVERY 1x IPOTOOLS TIG welder DC TIG-200PD 1x 4m hose package WP26 TIG torch with accessories 1x ground cable 3m 1x electrode holder 3m 1x instruction manual
